- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for S25FL128SAGMFB000
- Part Number S25FL128SAGMFB000
- Manufacturer Infineon
- Pin Count 16
- Part Category Integrated Circuit
- Package Category Small Outline Packages

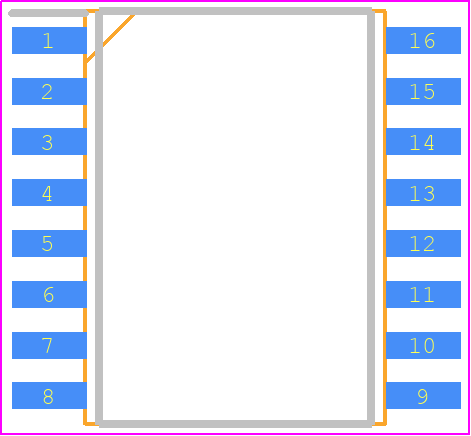

- Footprint Name Small Outline Packages - 16-Lead Wide Plastic Small Outline Package (300-mil Body Width)
- Released Date Jan 15, 2022
- Last Modified Date Jan 25, 2024 9:25 PM UTC
- Pinout / Pin List Click Here (Member Only)
S25FL128SAGMFB000 Details
-
Manufacturer Part Number:
S25FL128SAGMFB000
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8542.32.00.51
-
Factory Lead Time:
12 Weeks
-
Manufacturer:
Infineon Technologies AG
-
YTEOL:
10
-
Memory IC Type:
FLASH
-
Moisture Sensitivity Level:
3
-
Peak Reflow Temperature (Cel):
260
S25FL128SAGMFB000 Frequently Asked Questions (FAQs)
-
The S25FL128SAGMFB000 can operate from -40°C to +125°C, with a typical operating temperature range of -25°C to +85°C.
-
The HOLD# pin should be pulled high during power-up and power-down to prevent any unwanted commands from being executed. It's recommended to connect a pull-up resistor to VCC.
-
The recommended clock frequency for the SPI interface is up to 104 MHz, but it can operate at frequencies up to 120 MHz with some limitations.
-
The WP# pin is an active low input that prevents writing to the status register when low. It's recommended to connect a pull-up resistor to VCC to enable writing to the status register.
-
The S25FL128SAGMFB000 has a minimum erase cycle endurance of 100,000 cycles, with a typical value of 200,000 cycles.
Trust Checks
Community Provided
System Verified
Community Approved
S25FL128SAGMFB000 Overview
Use the download button to access the S25FL128SAGMFB000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like S25FL,
or try a keyword search, such as Flash Memories
