S25FL128SAGMFI011 - Infineon

Description: NOR Flash 128Mb 3V 133MHz Serial NOR Flash

Download S25FL128SAGMFI011 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
S25FL128SAGMFI011 - Infineon - PCB symbol
click to zoom
PCB Footprints

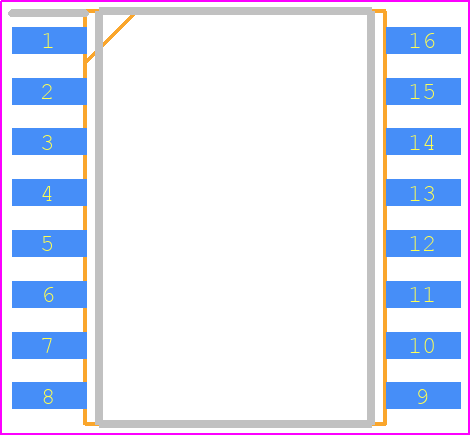

S25FL128SAGMFI011 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - 16-Lead Wide Plastic Small Outline Package (300-mil Body Width)
click to zoom
3D Models
S25FL128SAGMFI011 - Infineon - 3D model - Small Outline Packages - 16-Lead Wide Plastic Small Outline Package (300-mil Body Width)
click to zoom

S25FL128SAGMFI011 Details

  • Manufacturer Part Number:

    S25FL128SAGMFI011

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    10

  • Memory IC Type:

    FLASH

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Technology:

    65 nm

  • Terminal Finish:

    Matte Tin (Sn)

  • Time@Peak Reflow Temperature-Max (s):

    30

S25FL128SAGMFI011 Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the S25FL128SAGMFI011 is 104 MHz.
  • The S25FL128SAGMFI011 can withstand a minimum of 100,000 erase cycles.
  • The S25FL128SAGMFI011 has a data retention period of at least 20 years.
  • Yes, the S25FL128SAGMFI011 is compatible with the SPI (Serial Peripheral Interface) protocol.
  • The S25FL128SAGMFI011 comes in a 24-ball BGA (Ball Grid Array) package.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

S25FL128SAGMFI011 Overview

Use the download button to access the S25FL128SAGMFI011 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like S25FL, or try a keyword search, such as Flash Memories
