S25FL128SAGNFM000 footprint, schematic symbol and 3D model by Infineon

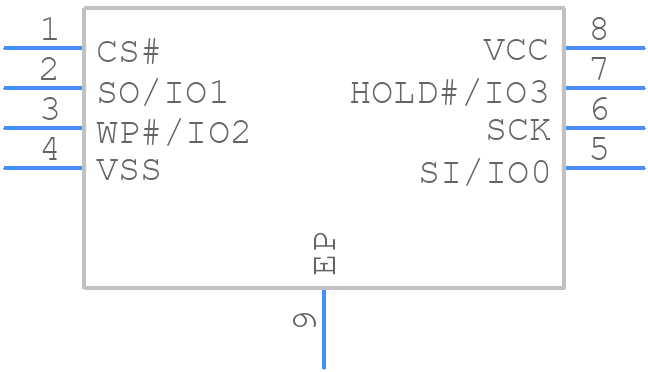

Symbol

PCB Footprints

3D Models

S25FL128SAGNFM000 Details

The maximum operating frequency of the S25FL128SAGNFM000 is 104 MHz.
The S25FL128SAGNFM000 can withstand a minimum of 100,000 erase cycles.
The S25FL128SAGNFM000 has a data retention period of at least 20 years.
Yes, the S25FL128SAGNFM000 is compatible with the SPI protocol, as well as Dual SPI and Quad SPI protocols.
The operating temperature range of the S25FL128SAGNFM000 is -40°C to 85°C.

Community Provided

System Verified

Community Approved

Use the download button to access the S25FL128SAGNFM000 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like S25FL, or try a keyword search, such as Flash Memories

If you searched for S25FL128SAGNFM000, you might also be interested in these parts:

Showing 0 results

Image	Part Number	Model
	S25FL128SAGNFA000 Infineon Technologies AG Flash
	S25FL128SAGNFM003 Cypress Semiconductor Flash, 16MX8, PDSO8
	S25FL128SAGNFI000 Spansion Flash, 16MX8, PDSO8
	S25FL128SAGNFB003 Cypress Semiconductor Flash, 16MX8, PDSO8
	S25FL128SAGNFB000 Cypress Semiconductor Flash, 16MX8, PDSO8
For a full list of alternate parts for S25FL128SAGNFM000, check out Findchips.com
