S25FL128SAGNFV001 footprint, schematic symbol and 3D model by Infineon

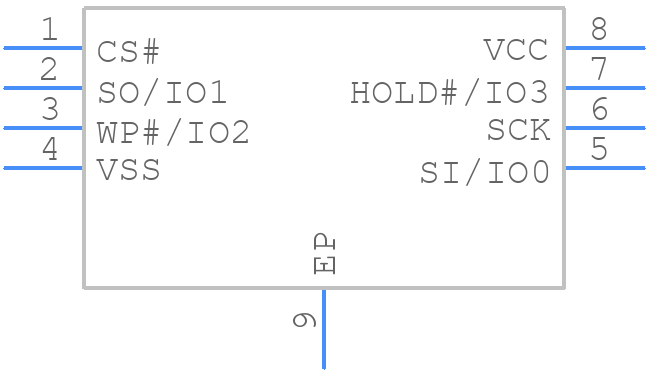

Symbol

PCB Footprints

3D Models

S25FL128SAGNFV001 Details

The maximum operating frequency of the S25FL128SAGNFV001 is 104 MHz.
The S25FL128SAGNFV001 can withstand a minimum of 100,000 erase cycles.
The S25FL128SAGNFV001 has a data retention period of at least 20 years.
Yes, the S25FL128SAGNFV001 is compatible with the SPI protocol, as well as Dual SPI and Quad SPI protocols.
The operating temperature range of the S25FL128SAGNFV001 is -40°C to 85°C.

Community Provided

System Verified

Community Approved

Use the download button to access the S25FL128SAGNFV001 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like S25FL, or try a keyword search, such as Flash Memories

Showing 0 results

Image	Part Number	Model
	S25FL128SAGNFI000 Spansion Flash, 16MX8, PDSO8
	S25FL128SAGNFB003 Cypress Semiconductor Flash, 16MX8, PDSO8
	S25FL128SAGNFA003 Cypress Semiconductor Flash, 16MX8, PDSO8
	S25FL128SAGNFV001 Spansion Flash, 16MX8, PDSO8
For a full list of alternate parts for S25FL128SAGNFV001, check out Findchips.com
