The S25FL128SDPMFIG11 can operate from -40°C to +125°C, making it suitable for industrial and automotive applications.
The S25FL128SDPMFIG11 can handle up to 100,000 erase cycles, making it suitable for applications that require frequent data updates.
The typical programming time for the S25FL128SDPMFIG11 is around 3-5 milliseconds per page, depending on the operating frequency and voltage.
Yes, the S25FL128SDPMFIG11 supports simultaneous read and write operations, allowing for improved system performance and efficiency.
The WP# (Write Protect) pin is used to prevent accidental writes to the device. When the WP# pin is low, the device is write-protected, and when it is high, the device can be written to.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
S25FL128SDPMFIG11 Overview

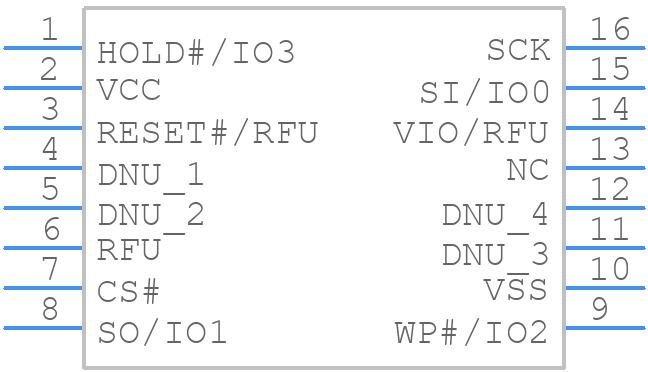

Use the download button to access the S25FL128SDPMFIG11 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like S25FL,
or try a keyword search, such as Flash Memories
