S25FL164K0XMFB010 - Infineon

Description: 16-Mbit (2 Mbyte)/32-Mbit (4 Mbyte)/ 64-Mbit (8 Mbyte), 3.0 V, SPI Flash Memory

Download S25FL164K0XMFB010 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this S25FL164K0XMFB010 model

Email notifications will be applied after download.

Send part feedback

Symbol

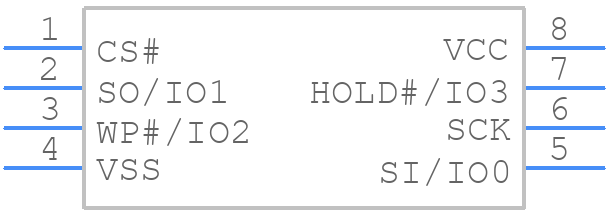

S25FL164K0XMFB010 - Infineon - PCB symbol

PCB Footprints

S25FL164K0XMFB010 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - SOC008 - 8-Lead SOP (208 mils width)

3D Models

S25FL164K0XMFB010 - Infineon - 3D model - Small Outline Packages - SOC008 - 8-Lead SOP (208 mils width)

Datasheet Download Datasheet
Stock & Prices Price & Stock for S25FL164K0XMFB010
Part Number S25FL164K0XMFB010
Manufacturer Infineon
Pin Count 8
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - SOC008 - 8-Lead SOP (208 mils width)
Released Date Apr 25, 2017
Last Modified Date Jan 25, 2024 9:25 PM UTC
Pinout / Pin List Click Here (Member Only)

S25FL164K0XMFB010 Details

Manufacturer Part Number:
S25FL164K0XMFB010
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
ECCN Code:
EAR99
HTS Code:
8542.32.00.51
Manufacturer:
Infineon Technologies AG
YTEOL:
0
Memory IC Type:
FLASH
Moisture Sensitivity Level:
3
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Programming Voltage:
3 V
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED

Trust Checks

Community Provided

System Verified

Community Approved

S25FL164K0XMFB010 Overview

Use the download button to access the S25FL164K0XMFB010 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like S25FL, or try a keyword search, such as Flash Memories
