The S25FL164K0XNFI010 can operate from -40°C to +125°C, making it suitable for industrial and automotive applications.
The HOLD# pin should be driven low during read and write operations to prevent the device from entering a low-power state. It's recommended to tie HOLD# to VCC or use an external pull-up resistor.
The S25FL164K0XNFI010 supports clock frequencies up to 104 MHz, but it's recommended to use a clock frequency of 50 MHz or lower to ensure reliable operation.
The WP# pin is used to protect the status register and the block protection bits. To write to these areas, WP# must be driven low. To protect these areas, WP# should be driven high or left floating.
The DPD mode is a low-power state that reduces the device's power consumption to near-zero. It's useful for battery-powered applications where the device is not accessed frequently.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
S25FL164K0XNFI010 Overview

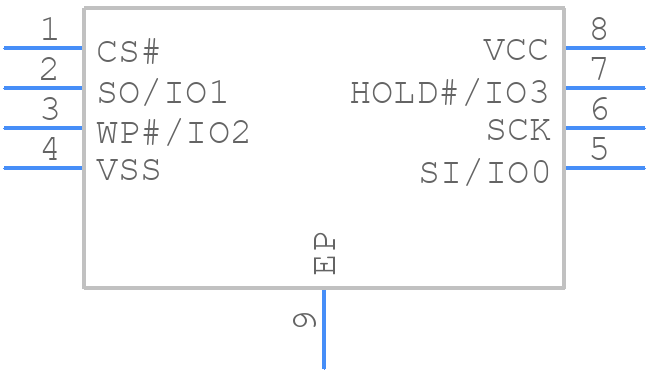

Use the download button to access the S25FL164K0XNFI010 schematic symbol, PCB footprint, and 3D model.
