S25FL256LAGMFM000 - Infineon

Description: NOR Flash Serial (SPI, Dual SPI, Quad SPI) 3V/3.3V 256M-bit 256M/128M/64M x 1/2-bit/4-bit 8ns Automotive 16-Pin SOIC W Tray

Download S25FL256LAGMFM000 Model

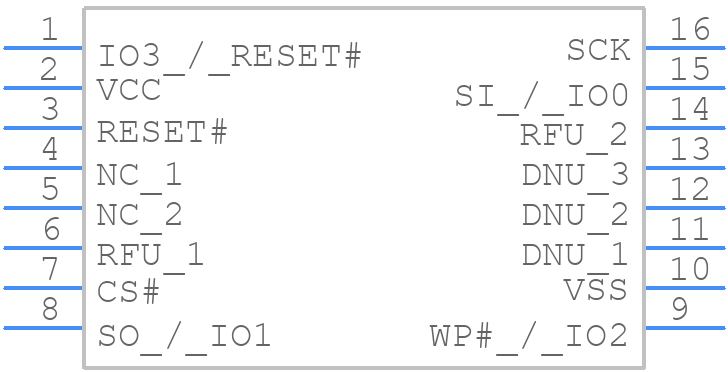

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
S25FL256LAGMFM000 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - SOIC 16-ren2
click to zoom
3D Models
S25FL256LAGMFM000 - Infineon  - 3D model - Small Outline Packages - SOIC 16-ren2
click to zoom

S25FL256LAGMFM000 Details

  • Manufacturer Part Number:

    S25FL256LAGMFM000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    7

  • Clock Frequency-Max (fCLK):

    133 MHz

  • Data Retention Time-Min:

    20

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    10.3 mm

  • Memory Density:

    268435456 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Number of Words:

    33554432 words

  • Number of Words Code:

    32000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    32MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    260

  • Programming Voltage:

    3 V

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.65 mm

  • Serial Bus Type:

    QSPI

  • Standby Current-Max:

    0.00005 A

  • Supply Current-Max:

    0.035 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS, 65nm

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Type:

    NOR TYPE

  • Width:

    7.5 mm

  • Write Protection:

    HARDWARE

S25FL256LAGMFM000 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the S25FL256LAGMFM000 is 2.7V to 3.6V.
  • The S25FL256LAGMFM000 can withstand up to 100,000 cycles of erase and program.
  • The data retention period for the S25FL256LAGMFM000 is 20 years at 25°C.
  • Yes, the S25FL256LAGMFM000 is compatible with the SPI protocol, as well as Dual SPI and Quad SPI protocols.
  • The S25FL256LAGMFM000 supports clock frequencies up to 133 MHz.
