Part Image

S25FL256LAGMFV000 - Infineon

Description: NOR Flash Nor

Download S25FL256LAGMFV000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

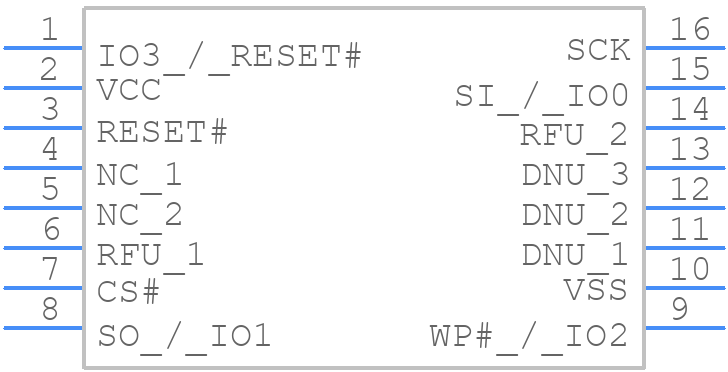

S25FL256LAGMFV000 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - SOIC 16-ren2
click to zoom
3D Models
S25FL256LAGMFV000 - Infineon  - 3D model - Small Outline Packages - SOIC 16-ren2
click to zoom

S25FL256LAGMFV000 Details

  • Manufacturer Part Number:

    S25FL256LAGMFV000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    7

  • Clock Frequency-Max (fCLK):

    133 MHz

  • Data Retention Time-Min:

    20

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    10.3 mm

  • Memory Density:

    268435456 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Number of Words:

    33554432 words

  • Number of Words Code:

    32000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    32MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    260

  • Programming Voltage:

    3 V

  • Seated Height-Max:

    2.65 mm

  • Serial Bus Type:

    QSPI

  • Standby Current-Max:

    0.00003 A

  • Supply Current-Max:

    0.035 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS, 65nm

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Type:

    NOR TYPE

  • Width:

    7.5 mm

  • Write Protection:

    HARDWARE

S25FL256LAGMFV000 Frequently Asked Questions (FAQs)

  • The S25FL256LAGMFV000 can operate from -40°C to +125°C, with a typical operating temperature range of -25°C to +85°C.
  • The S25FL256LAGMFV000 can handle up to 100,000 erase cycles per sector, with a minimum of 10,000 erase cycles guaranteed.
  • The S25FL256LAGMFV000 has a minimum data retention period of 20 years at a temperature of 25°C, and 10 years at a temperature of 85°C.
  • Yes, the S25FL256LAGMFV000 is suitable for use in MCP or SiP designs, but it requires careful consideration of thermal and electrical design constraints.
  • The recommended storage temperature range for the S25FL256LAGMFV000 is -40°C to +125°C, with a relative humidity of 60% or less.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

S25FL256LAGMFV000 Overview

Use the download button to access the S25FL256LAGMFV000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like S25FL, or try a keyword search, such as Flash Memories

Parts related to S25FL256LAGMFV000

Showing 0 results
