S25FL256LAGNFM010 - Infineon

Description: NOR Flash Serial-SPI 3V/3.3V 256M-bit 256M/128M/64M x 1/2-bit/4-bit 8ns Automotive 8-Pin WSON EP Tray

Download S25FL256LAGNFM010 Model
Schematic

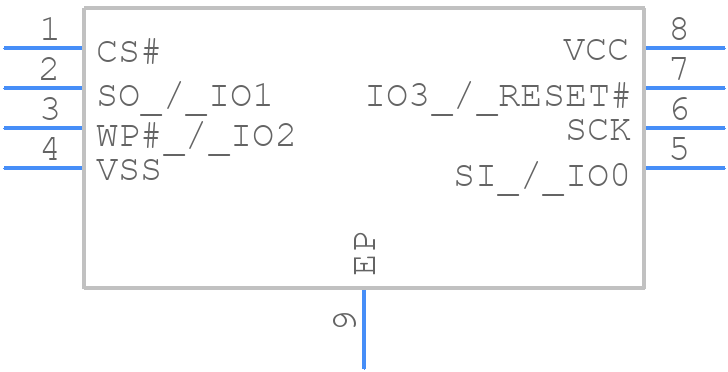

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
S25FL256LAGNFM010 - Infineon PCB footprint - Small Outline No-lead - Small Outline No-lead - WSON 8-Contact 6 x 8 mm Leadless (WNG008)
click to zoom
3D Models
S25FL256LAGNFM010 - Infineon  - 3D model - Small Outline No-lead - WSON 8-Contact 6 x 8 mm Leadless (WNG008)
click to zoom

S25FL256LAGNFM010 Details

  • Manufacturer Part Number:

    S25FL256LAGNFM010

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WSON-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    7

  • Clock Frequency-Max (fCLK):

    133 MHz

  • Data Retention Time-Min:

    20

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-N8

  • Length:

    6 mm

  • Memory Density:

    268435456 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    33554432 words

  • Number of Words Code:

    32000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    32MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HWSON

  • Package Equivalence Code:

    SOLCC8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY VERY THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    3 V

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Serial Bus Type:

    QSPI

  • Standby Current-Max:

    0.00005 A

  • Supply Current-Max:

    0.035 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS, 65nm

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Type:

    NOR TYPE

  • Width:

    5 mm

  • Write Protection:

    HARDWARE

S25FL256LAGNFM010 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the S25FL256LAGNFM010 is -40°C to 125°C.
  • The hold signal (HOLD#) should be asserted low to pause the current operation and de-asserted high to resume the operation.
  • The write protect (WP#) signal is used to prevent accidental writes to the device. When WP# is low, the device is write-protected.
  • To perform a sector erase operation, send the sector erase command (0x20) followed by the sector address. The device will then erase the specified sector.
  • The recommended power-up sequence is to apply VCC first, followed by VPP (if used), and then the clock signal (CLK).
