S25FL256SAGBAEA00 - Infineon

Description: NOR Flash A&D

Download S25FL256SAGBAEA00 Model
Schematic

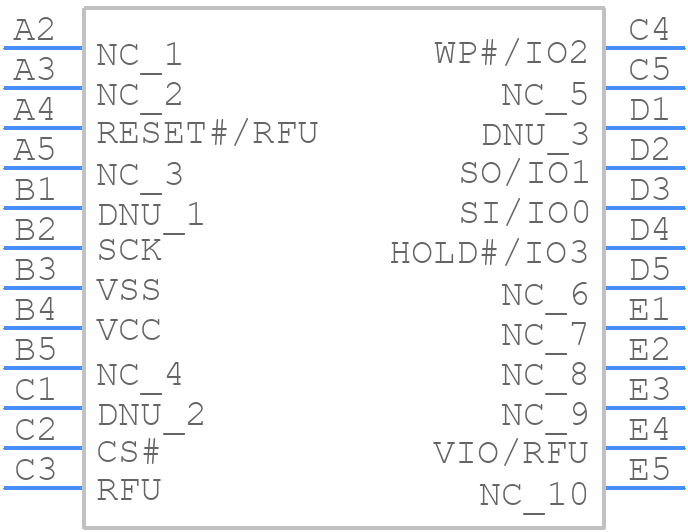

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
S25FL256SAGBAEA00 - Infineon PCB footprint - BGA - BGA - pg-tfbga-24
click to zoom
3D Models
S25FL256SAGBAEA00 - Infineon  - 3D model - BGA - pg-tfbga-24
click to zoom

S25FL256SAGBAEA00 Details

  • Manufacturer Part Number:

    S25FL256SAGBAEA00

  • Part Life Cycle Code:

    Active

  • Package Description:

    BGA-24

  • ECCN Code:

    3A001.a.2.c

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    8

  • Alternate Memory Width:

    4

  • Clock Frequency-Max (fCLK):

    133 MHz

  • Data Retention Time-Min:

    20

  • Endurance:

    100 Write/Erase Cycles

  • JESD-30 Code:

    R-PBGA-B24

  • JESD-609 Code:

    e0

  • Length:

    8 mm

  • Memory Density:

    268435456 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Number of Words:

    33554432 words

  • Number of Words Code:

    32000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Organization:

    32MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TBGA

  • Package Equivalence Code:

    BGA24,5X5,40

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    3 V

  • Seated Height-Max:

    1.2 mm

  • Serial Bus Type:

    QSPI

  • Standby Current-Max:

    0.0003 A

  • Supply Current-Max:

    0.1 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Type:

    NOR TYPE

  • Width:

    6 mm

  • Write Protection:

    HARDWARE/SOFTWARE

S25FL256SAGBAEA00 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for S25FL256SAGBAEA00 is 2.7V to 3.6V.
  • The S25FL256SAGBAEA00 can withstand up to 100,000 cycles of erase and program.
  • The maximum data retention period for S25FL256SAGBAEA00 is 20 years at 25°C.
  • Yes, the S25FL256SAGBAEA00 supports ECC, which can correct single-bit errors and detect double-bit errors.
  • The typical programming time for S25FL256SAGBAEA00 is around 3.5ms for a 256-byte page.
