S25FL256SAGMFI010 - Infineon

Description: Flash Memory 256Mb 3V 133MHz Serial NOR Flash

Download S25FL256SAGMFI010 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

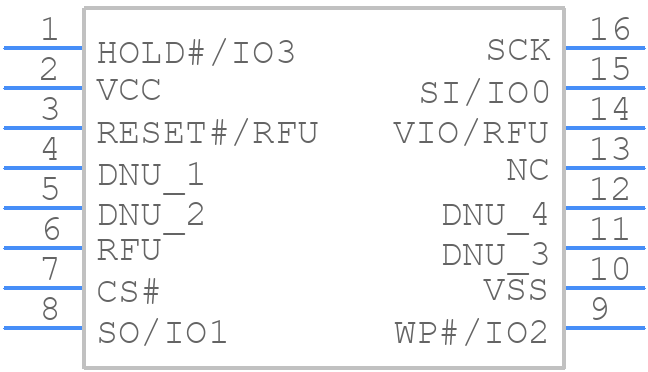

S25FL256SAGMFI010 - Infineon - PCB symbol
click to zoom
PCB Footprints
S25FL256SAGMFI010 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - 16-Lead Wide Plastic Small Outline Package (300-mil Body Width)
click to zoom
3D Models
S25FL256SAGMFI010 - Infineon - 3D model - Small Outline Packages - 16-Lead Wide Plastic Small Outline Package (300-mil Body Width)
click to zoom

S25FL256SAGMFI010 Details

  • Manufacturer Part Number:

    S25FL256SAGMFI010

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    10

  • Memory IC Type:

    FLASH

  • Moisture Sensitivity Level:

    3

  • Qualification Status:

    Not Qualified

  • Terminal Finish:

    Matte Tin (Sn)

S25FL256SAGMFI010 Frequently Asked Questions (FAQs)

  • The S25FL256SAGMFI010 has an operating temperature range of -40°C to +85°C.
  • The HOLD# signal should be kept low during read and write operations. If the HOLD# signal is asserted (driven high), the device will enter a 'hold' state, and all ongoing operations will be paused.
  • The WP# pin is used to prevent accidental writes to the device. When WP# is driven low, the device is write-protected, and any write operations will be ignored.
  • The S25FL256SAGMFI010 has a density of 256 Mbits and is organized as 32,768 x 8 bits.
  • The typical programming time for the S25FL256SAGMFI010 is 1.5 ms per 256-byte block.
