S25FL256SAGMFIR01 - Infineon

Description: Cypress Semiconductor S25FL256SAGMFIR01, SPI NOR 256Mbit Flash Memory, 16-Pin SOIC

Download S25FL256SAGMFIR01 Model

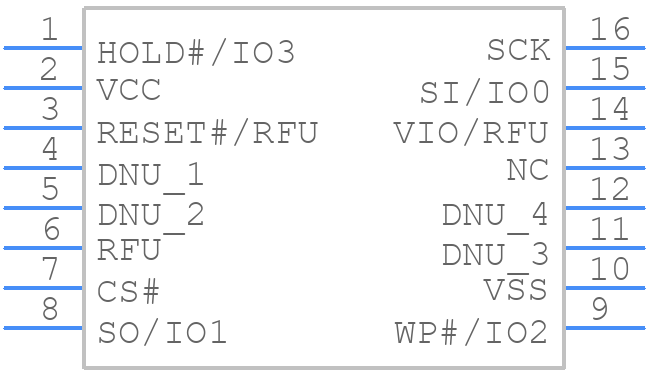

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
S25FL256SAGMFIR01 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - SOIC 16-ren2
click to zoom
3D Models
S25FL256SAGMFIR01 - Infineon  - 3D model - Small Outline Packages - SOIC 16-ren2
click to zoom

S25FL256SAGMFIR01 Details

  • Manufacturer Part Number:

    S25FL256SAGMFIR01

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Direct Group:

    ME1018622L13

  • Similar Group:

    ME1010581053100311231003

  • Country Of Origin:

    Mainland China, Taiwan, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    10

  • Additional Feature:

    IT ALSO CONFIGURED AS 256M X 1

  • Alternate Memory Width:

    2

  • Clock Frequency-Max (fCLK):

    133 MHz

  • Data Retention Time-Min:

    20

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Memory Density:

    268435456 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Number of Words:

    33554432 words

  • Number of Words Code:

    32000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    32MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    3 V

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.65 mm

  • Serial Bus Type:

    SPI

  • Standby Current-Max:

    0.0001 A

  • Supply Current-Max:

    0.1 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS, 65 nm

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Type:

    NOR TYPE

  • Width:

    7.5 mm

  • Write Cycle Time-Max (tWC):

    500 ms

  • Write Protection:

    HARDWARE/SOFTWARE

S25FL256SAGMFIR01 Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the S25FL256SAGMFIR01 is 104 MHz.
  • The S25FL256SAGMFIR01 can withstand a minimum of 100,000 erase cycles.
  • The data retention period of the S25FL256SAGMFIR01 is a minimum of 20 years at a temperature of 25°C.
  • Yes, the S25FL256SAGMFIR01 is compatible with the SPI protocol, as well as Dual SPI and Quad SPI protocols.
  • The S25FL256SAGMFIR01 is available in a 24-ball BGA package.
