S25FL256SAGNFB000 - Infineon

Description: NOR Flash Nor, 3.0V SPI Flash Memory

Download S25FL256SAGNFB000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

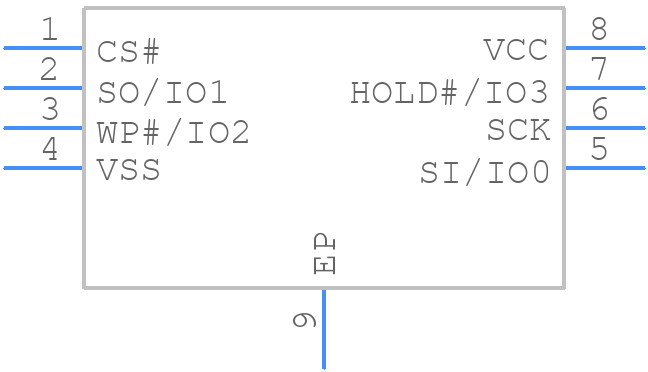

Symbol
S25FL256SAGNFB000 - Infineon - PCB symbol
click to zoom
PCB Footprints
S25FL256SAGNFB000 - Infineon PCB footprint - Small Outline No-lead - Small Outline No-lead - WNG008 — WSON 8-contact (6 x 8 mm) no-lead
click to zoom
3D Models
S25FL256SAGNFB000 - Infineon - 3D model - Small Outline No-lead - WNG008 — WSON 8-contact (6 x 8 mm) no-lead
click to zoom

S25FL256SAGNFB000 Details

  • Manufacturer Part Number:

    S25FL256SAGNFB000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    10

  • Memory IC Type:

    FLASH

S25FL256SAGNFB000 Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the S25FL256SAGNFB000 is 104 MHz.
  • The S25FL256SAGNFB000 can withstand a minimum of 100,000 erase cycles.
  • The S25FL256SAGNFB000 has a data retention period of at least 20 years.
  • Yes, the S25FL256SAGNFB000 is compatible with the SPI protocol, as well as Dual SPI and Quad SPI protocols.
  • The operating temperature range of the S25FL256SAGNFB000 is -40°C to +85°C.
