S25FL256SAGNFI001 footprint, schematic symbol and 3D model by Infineon

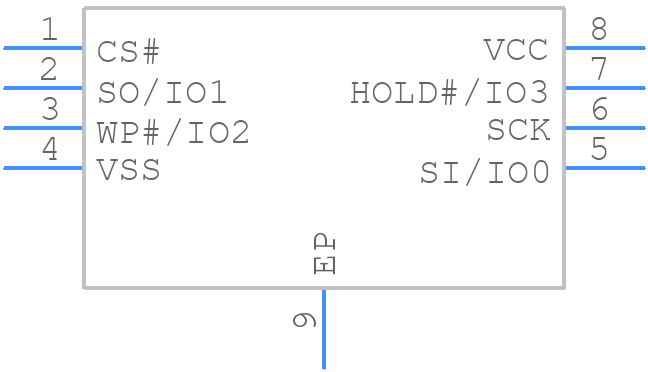

Symbol

PCB Footprints

3D Models

S25FL256SAGNFI001 Details

The maximum operating frequency of the S25FL256SAGNFI001 is 104 MHz.
The S25FL256SAGNFI001 can withstand a minimum of 100,000 erase cycles.
The S25FL256SAGNFI001 has a data retention period of at least 20 years.
Yes, the S25FL256SAGNFI001 is compatible with the SPI protocol, as well as Dual SPI and Quad SPI protocols.
The operating temperature range of the S25FL256SAGNFI001 is -40°C to 85°C.

Community Provided

System Verified

Community Approved

Use the download button to access the S25FL256SAGNFI001 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like S25FL, or try a keyword search, such as Flash Memories

If you searched for S25FL256SAGNFI001, you might also be interested in these parts:

Showing 0 results

Image	Part Number	Model
	S25FL256SAGNFI001 Cypress Semiconductor Flash, 32MX8, PDSO8
	S25FL256SAGNFI001 Spansion Flash, 32MX8, PDSO8
For a full list of alternate parts for S25FL256SAGNFI001, check out Findchips.com
