S25FL256SAGNFI003 - Infineon

Description: NOR Flash 256Mb 3V 133MHz Serial NOR Flash

Download S25FL256SAGNFI003 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

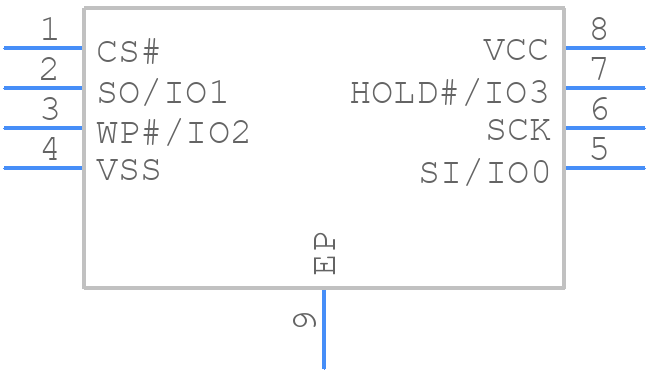

S25FL256SAGNFI003 - Infineon - PCB symbol
click to zoom
PCB Footprints
S25FL256SAGNFI003 - Infineon PCB footprint - Small Outline No-lead - Small Outline No-lead - WNG008 — WSON 8-contact (6 x 8 mm) no-lead
click to zoom
3D Models
S25FL256SAGNFI003 - Infineon - 3D model - Small Outline No-lead - WNG008 — WSON 8-contact (6 x 8 mm) no-lead
click to zoom

S25FL256SAGNFI003 Details

  • Manufacturer Part Number:

    S25FL256SAGNFI003

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    10

  • Memory IC Type:

    FLASH

  • Qualification Status:

    Not Qualified

S25FL256SAGNFI003 Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the S25FL256SAGNFI003 is 104 MHz.
  • The S25FL256SAGNFI003 can withstand a minimum of 100,000 erase cycles.
  • The data retention period of the S25FL256SAGNFI003 is a minimum of 20 years at a temperature of 25°C.
  • Yes, the S25FL256SAGNFI003 is compatible with the SPI protocol, as well as Dual SPI and Quad SPI protocols.
  • The operating voltage range of the S25FL256SAGNFI003 is 2.7V to 3.6V.
