- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for S25FL256SAGNFM000
- Part Number S25FL256SAGNFM000
- Manufacturer Infineon
- Pin Count 9
- Part Category Integrated Circuit
- Package Category Small Outline No-lead

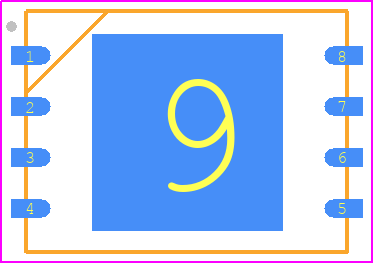

- Footprint Name Small Outline No-lead - WNG008
- Released Date Aug 3, 2023
- Last Modified Date Aug 3, 2023 4:06 AM UTC
- Pinout / Pin List Click Here (Member Only)
S25FL256SAGNFM000 Details
-
Manufacturer Part Number:
S25FL256SAGNFM000
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8542.32.00.51
-
Factory Lead Time:
12 Weeks
-
Manufacturer:
Infineon Technologies AG
-
YTEOL:
10
-
Memory IC Type:
FLASH
-
Moisture Sensitivity Level:
3
-
Peak Reflow Temperature (Cel):
260
S25FL256SAGNFM000 Frequently Asked Questions (FAQs)
-
The S25FL256SAGNFM000 can operate from -40°C to +125°C, with a typical operating temperature range of -25°C to +85°C.
-
The S25FL256SAGNFM000 is rated for a minimum of 100,000 erase cycles per sector, with a typical endurance of 200,000 cycles.
-
The typical programming time for a single page (256 bytes) is around 1.5 ms, with a maximum time of 3 ms.
-
Yes, the S25FL256SAGNFM000 can operate from a single 1.7V to 3.6V power supply, making it suitable for systems with a 1.8V power supply.
-
The HOLD# pin should be driven low during read and write operations to ensure that the device is not put into a hold state, which would pause the operation.
Trust Checks
Community Provided
System Verified
Community Approved
S25FL256SAGNFM000 Overview

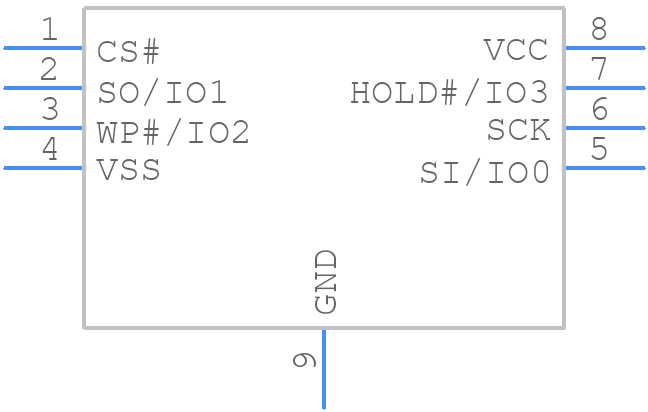

Use the download button to access the S25FL256SAGNFM000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like S25FL,
or try a keyword search, such as Flash Memories
