S25FL512SAGBHIA10 footprint, schematic symbol and 3D model by Infineon

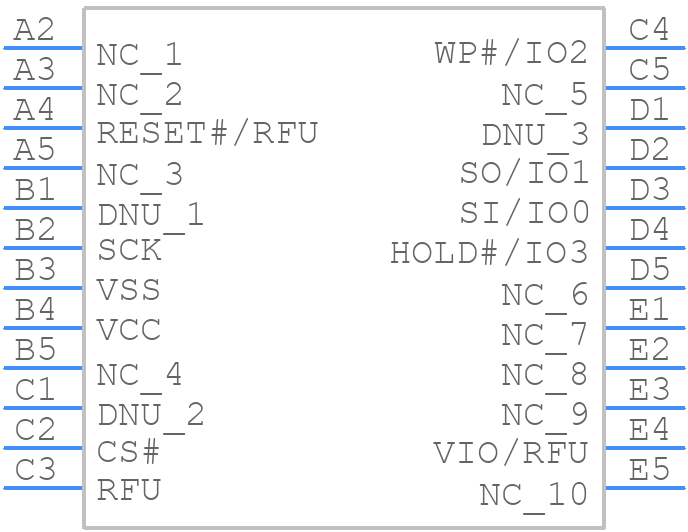

Symbol

PCB Footprints

3D Models

S25FL512SAGBHIA10 Details

The maximum operating frequency of the S25FL512SAGBHIA10 is 104 MHz.
The S25FL512SAGBHIA10 can endure up to 100,000 program/erase cycles before it starts to degrade.
The S25FL512SAGBHIA10 has a data retention period of at least 20 years at a temperature of 25°C.
Yes, the S25FL512SAGBHIA10 is compatible with the SPI protocol, as well as other protocols such as Dual SPI and Quad SPI.
The S25FL512SAGBHIA10 comes in a 24-ball BGA package.

Community Provided

System Verified

Community Approved

Use the download button to access the S25FL512SAGBHIA10 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like S25FL, or try a keyword search, such as Flash Memories
