S25FL512SAGBHIC10 - Infineon

Description: NOR Flash 512Mb 3V 133MHz Serial NOR Flash

Download S25FL512SAGBHIC10 Model

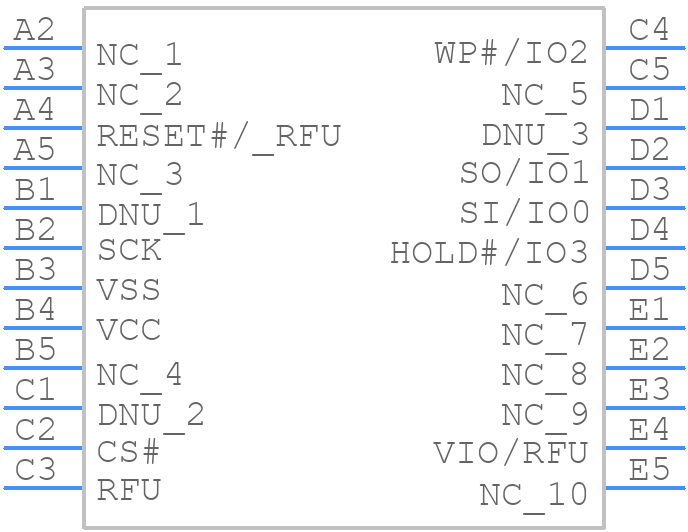

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

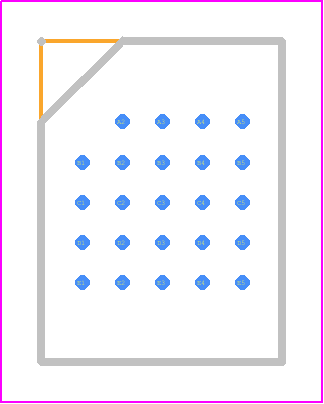

S25FL512SAGBHIC10 - Infineon PCB footprint - BGA - BGA - Ball Grid Array 24-Ball 6x8 mm (FAB024)_2021
click to zoom
3D Models
S25FL512SAGBHIC10 - Infineon  - 3D model - BGA - Ball Grid Array 24-Ball 6x8 mm (FAB024)_2021
click to zoom

S25FL512SAGBHIC10 Details

  • Manufacturer Part Number:

    S25FL512SAGBHIC10

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Direct Group:

    ME1017982K41

  • Similar Group:

    ME1010841053100310031003

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    10

  • Memory IC Type:

    FLASH

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Technology:

    65 nm

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

S25FL512SAGBHIC10 Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the S25FL512SAGBHIC10 is 104 MHz.
  • The S25FL512SAGBHIC10 can endure up to 100,000 program/erase cycles before it starts to degrade.
  • The typical programming time for the S25FL512SAGBHIC10 is 1.5 ms per 256-byte block.
  • Yes, the S25FL512SAGBHIC10 supports simultaneous read and write operations, allowing for improved system performance.
  • The operating temperature range of the S25FL512SAGBHIC10 is -40°C to +85°C.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

S25FL512SAGBHIC10 Overview

Use the download button to access the S25FL512SAGBHIC10 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like S25FL, or try a keyword search, such as Flash Memories
