- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for S25FL512SAGBHVB10
- Part Number S25FL512SAGBHVB10
- Manufacturer Infineon
- Pin Count 24
- Part Category Integrated Circuit
- Package Category BGA
- Footprint Name BGA - FAC024 24-Ball BGA
- Released Date Feb 14, 2023
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
S25FL512SAGBHVB10 Details
-
Manufacturer Part Number:
S25FL512SAGBHVB10
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8542.32.00.51
-
Manufacturer:
Infineon Technologies AG
-
YTEOL:
10
-
Memory IC Type:
FLASH
-
Qualification Status:
Not Qualified
S25FL512SAGBHVB10 Frequently Asked Questions (FAQs)
-
The S25FL512SAGBHVB10 has an operating temperature range of -40°C to +125°C, making it suitable for use in a wide range of applications.
-
The S25FL512SAGBHVB10 is rated for a minimum of 100,000 erase cycles, making it suitable for applications that require frequent data updates.
-
The typical programming time for the S25FL512SAGBHVB10 is around 3-5 milliseconds per 256-byte page, depending on the operating conditions and the specific programming algorithm used.
-
Yes, the S25FL512SAGBHVB10 supports simultaneous read and write operations, allowing for improved system performance and efficiency.
-
The WP# (Write Protect) pin is used to prevent accidental writes to the device. When the WP# pin is low, the device is in a write-protected state, and any write operations will be ignored.
Trust Checks
Community Provided
System Verified
Community Approved
S25FL512SAGBHVB10 Overview

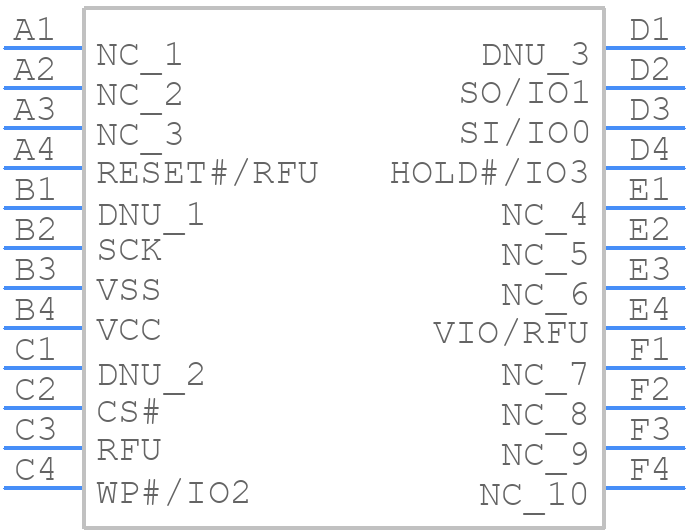

Use the download button to access the S25FL512SAGBHVB10 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like S25FL,
or try a keyword search, such as Flash Memories
