S25FL512SAGMFI011 - Infineon

Description: Flash,512Mbit,QSPI,133MHz,3V,SOIC16 S25FL512SAGMFI011, SPI NOR Flash Memory, 128M x 4 bit, 256M x 2 bit, 512M x 1 bit 512Mbit, 2.7 → 3.6 V, 16-Pin

Download S25FL512SAGMFI011 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
S25FL512SAGMFI011 - Infineon - PCB symbol
click to zoom

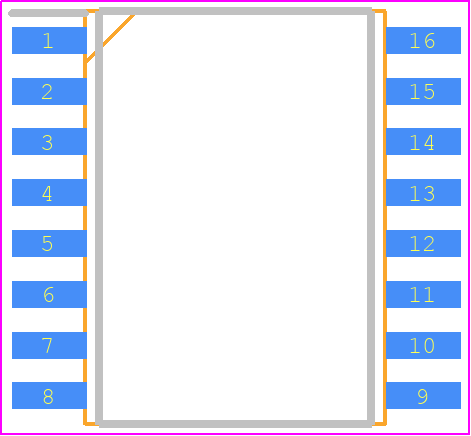

PCB Footprints
S25FL512SAGMFI011 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - 16-Lead Wide Plastic Small Outline Package (300-mil Body Width)
click to zoom
3D Models
S25FL512SAGMFI011 - Infineon - 3D model - Small Outline Packages - 16-Lead Wide Plastic Small Outline Package (300-mil Body Width)
click to zoom

S25FL512SAGMFI011 Details

  • Manufacturer Part Number:

    S25FL512SAGMFI011

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    10

  • Memory IC Type:

    FLASH

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Technology:

    65 nm

  • Terminal Finish:

    Matte Tin (Sn)

  • Time@Peak Reflow Temperature-Max (s):

    30

S25FL512SAGMFI011 Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the S25FL512SAGMFI011 is 104 MHz.
  • The S25FL512SAGMFI011 can endure up to 100,000 program/erase cycles before it starts to degrade.
  • The S25FL512SAGMFI011 has a data retention period of at least 20 years at a temperature of 25°C.
  • Yes, the S25FL512SAGMFI011 is compatible with the SPI protocol, as well as other protocols such as Dual SPI and Quad SPI.
  • The S25FL512SAGMFI011 comes in a 24-ball BGA package.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

S25FL512SAGMFI011 Overview

Use the download button to access the S25FL512SAGMFI011 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like S25FL, or try a keyword search, such as Flash Memories
