S25FL512SAGMFV010 - Infineon

Description: NOR Flash Serial (SPI, Dual SPI, Quad SPI) 3V/3.3V 512M-bit 512M/256M/128M x 1/2-bit/4-bit 14.5ns 16-Pin SOIC W Tray

Download S25FL512SAGMFV010 Model

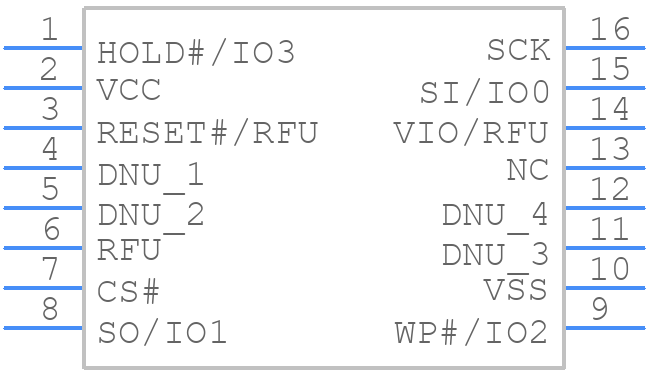

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
S25FL512SAGMFV010 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - SCK
click to zoom
3D Models
S25FL512SAGMFV010 - Infineon  - 3D model - Small Outline Packages - SCK
click to zoom

S25FL512SAGMFV010 Details

  • Manufacturer Part Number:

    S25FL512SAGMFV010

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    10

  • Memory IC Type:

    FLASH

  • Qualification Status:

    Not Qualified

S25FL512SAGMFV010 Frequently Asked Questions (FAQs)

  • The S25FL512SAGMFV010 has an operating temperature range of -40°C to +125°C, making it suitable for industrial and automotive applications.
  • The HOLD# pin should be pulled high during power-up and power-down to prevent any unwanted commands from being executed. It's recommended to connect a pull-up resistor to VCC and a capacitor to GND to ensure a clean signal.
  • The S25FL512SAGMFV010 supports clock frequencies up to 104 MHz, but it's recommended to use a clock frequency of 50 MHz or lower to ensure reliable operation and minimize power consumption.
  • The WP# pin is used to protect the status register and the non-volatile configuration register. When WP# is low, these registers are write-protected. When WP# is high, these registers can be written. It's recommended to tie WP# to VCC or use a pull-up resistor to ensure that the registers are not accidentally written.
  • The DPD mode is a low-power state that reduces the current consumption of the device to a minimum. It's useful for battery-powered applications where power consumption needs to be minimized. However, note that the device will take some time to wake up from DPD mode, so it's not suitable for applications that require fast wake-up times.
