The S25FL512SAGMFVG10 has an operating temperature range of -40°C to +125°C, making it suitable for industrial and automotive applications.
The HOLD# pin should be pulled high during power-up and power-down to prevent unwanted commands from being executed. It's recommended to connect a pull-up resistor to VCC and a capacitor to GND to ensure a clean signal.
The S25FL512SAGMFVG10 supports clock frequencies up to 104 MHz, but it's recommended to use a clock frequency of 50 MHz or lower to ensure reliable operation and minimize power consumption.
The WP# pin is used to protect the status register and the first 256 bytes of the memory array from being written. To enable write protection, connect WP# to VCC. To disable write protection, connect WP# to GND.
The DPD mode is a low-power state that reduces the device's power consumption to a minimum. It's useful for battery-powered devices or applications where power consumption needs to be minimized. However, note that the device will not respond to any commands in DPD mode.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
S25FL512SAGMFVG10 Overview

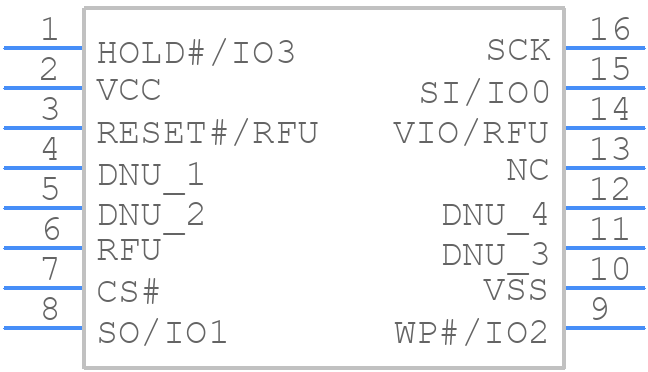

Use the download button to access the S25FL512SAGMFVG10 schematic symbol, PCB footprint, and 3D model.
