Part Image

S25FL512SDPBHVC10 - Infineon

Description: NOR Flash Nor

Download S25FL512SDPBHVC10 Model

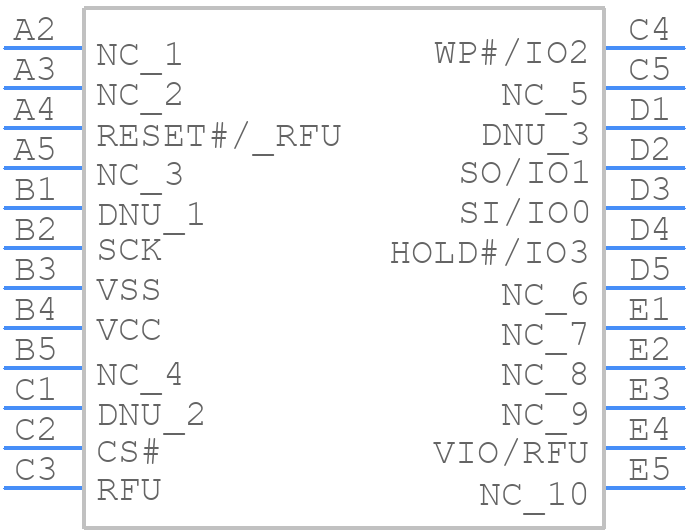

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
S25FL512SDPBHVC10 - Infineon PCB footprint - BGA - BGA - Ball Grid Array 24-ball 6 x 8 mm (FAB024)
click to zoom
3D Models
S25FL512SDPBHVC10 - Infineon  - 3D model - BGA - Ball Grid Array 24-ball 6 x 8 mm (FAB024)
click to zoom

S25FL512SDPBHVC10 Details

  • Manufacturer Part Number:

    S25FL512SDPBHVC10

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    10

  • Memory IC Type:

    FLASH

  • Qualification Status:

    Not Qualified

S25FL512SDPBHVC10 Frequently Asked Questions (FAQs)

  • The S25FL512SDPBHVC10 has an operating temperature range of -40°C to +125°C, making it suitable for use in a wide range of applications.
  • The HOLD# pin should be pulled high during power-up and power-down to prevent any unwanted commands from being executed. It's recommended to connect a pull-up resistor to VCC to ensure the pin is held high during these transitions.
  • The S25FL512SDPBHVC10 supports clock frequencies up to 104 MHz, but it's recommended to use a clock frequency of 50 MHz or lower to ensure reliable operation and minimize power consumption.
  • The WP# pin is used to protect the status register from being written. When WP# is low, the status register is write-protected. When WP# is high, the status register can be written. It's recommended to tie WP# to VCC or use a pull-up resistor to ensure the status register is not accidentally written.
  • The DPD mode is a low-power state that reduces the device's power consumption to a minimum. It's useful for applications where the device needs to be in a low-power state for an extended period. However, note that the DPD mode can only be exited by a hardware reset or power cycle.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

S25FL512SDPBHVC10 Overview

Use the download button to access the S25FL512SDPBHVC10 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like S25FL, or try a keyword search, such as Flash Memories
