S25FL512SDPMFI011 footprint, schematic symbol and 3D model by Infineon

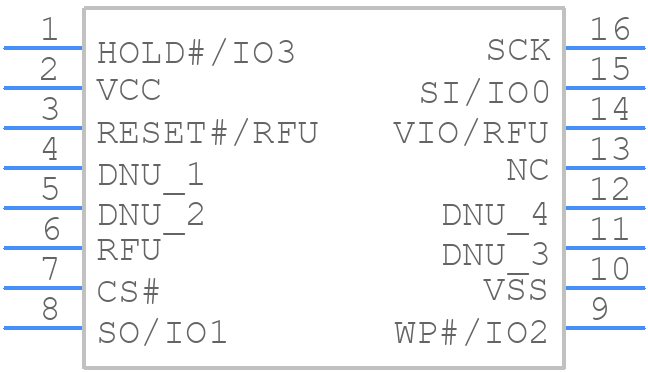

Symbol

PCB Footprints

3D Models

S25FL512SDPMFI011 Details

The S25FL512SDPMFI011 can operate from -40°C to +125°C, with a maximum junction temperature of 150°C.
The S25FL512SDPMFI011 is rated for a minimum of 100,000 erase cycles per sector, and 10,000 erase cycles per block.
The typical programming time for a page is around 1.2 ms, but this can vary depending on the operating conditions and the specific use case.
Yes, the S25FL512SDPMFI011 is suitable for use in MCP or SiP designs, but it's essential to ensure that the package and PCB design meet the thermal and electrical requirements of the device.
The S25FL512SDPMFI011 has a built-in POR and BOR circuitry that ensures the device resets correctly during power-up and power-down sequences, and also during voltage drops or brown-out conditions.

Community Provided

System Verified

Community Approved

Use the download button to access the S25FL512SDPMFI011 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like S25FL, or try a keyword search, such as Flash Memories
