Part Image

S25FS064SAGMFV010 - Infineon

Description: NOR Flash 64 Mbit (8 Mbyte) 1.8-V FS-S Flash

Download S25FS064SAGMFV010 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this S25FS064SAGMFV010 model

Email notifications will be applied after download.

Send part feedback

Symbol

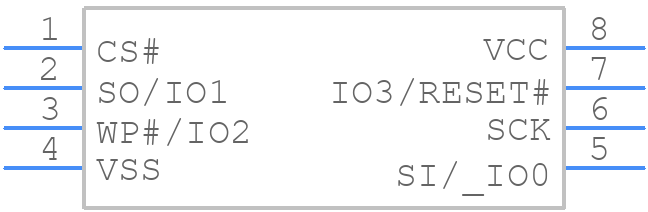

S25FS064SAGMFV010 - Infineon - PCB symbol

PCB Footprints

S25FS064SAGMFV010 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - SOC008 - 8-Lead SOP (208 mils width)

3D Models

S25FS064SAGMFV010 - Infineon - 3D model - Small Outline Packages - SOC008 - 8-Lead SOP (208 mils width)

Datasheet Download Datasheet
Stock & Prices Price & Stock for S25FS064SAGMFV010
Part Number S25FS064SAGMFV010
Manufacturer Infineon
Pin Count 8
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - SOC008 - 8-Lead SOP (208 mils width)
Released Date Feb 15, 2018
Last Modified Date Jan 25, 2024 9:25 PM UTC
Pinout / Pin List Click Here (Member Only)

S25FS064SAGMFV010 Details

Manufacturer Part Number:
S25FS064SAGMFV010
Manufacturer:
Infineon Technologies AG

Trust Checks

Community Provided

System Verified

Community Approved

S25FS064SAGMFV010 Overview

Use the download button to access the S25FS064SAGMFV010 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like S25FS, or try a keyword search, such as Flash Memories
