S25FS064SAGNFI033 - Infineon

Description: NOR Flash Nor

Download S25FS064SAGNFI033 Model

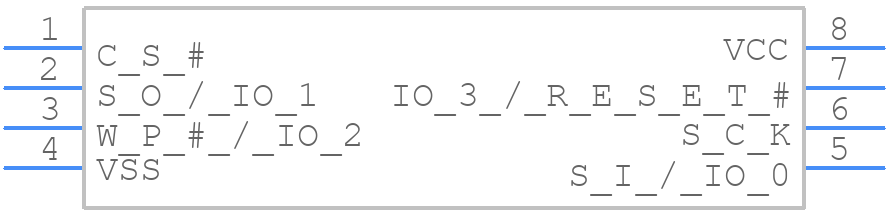

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
S25FS064SAGNFI033 - Infineon PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-Pad LGA 5x6
click to zoom
3D Models
S25FS064SAGNFI033 - Infineon  - 3D model - Small Outline No-lead - 8-Pad LGA 5x6
click to zoom

S25FS064SAGNFI033 Details

  • Manufacturer Part Number:

    S25FS064SAGNFI033

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    10

  • Clock Frequency-Max (fCLK):

    133 MHz

  • Data Retention Time-Min:

    20

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-XBGA-N8

  • Length:

    6 mm

  • Memory Density:

    67108864 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    8388608 words

  • Number of Words Code:

    8000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    8MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    LGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    1.8 V

  • Seated Height-Max:

    0.8 mm

  • Serial Bus Type:

    QSPI

  • Supply Voltage-Max (Vsup):

    2 V

  • Supply Voltage-Min (Vsup):

    1.7 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    BOTTOM

  • Type:

    NOR TYPE

  • Width:

    5 mm

  • Write Protection:

    HARDWARE/SOFTWARE

S25FS064SAGNFI033 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the S25FS064SAGNFI033 is 2.7V to 3.6V, with a typical voltage of 3.3V.
  • The hold pin (HOLD#) should be driven low during read and write operations to prevent the device from entering a low-power state. When the hold pin is driven high, the device will enter a low-power state, and all internal operations will be suspended.
  • The write protect pin (WP#) is used to prevent accidental writes to the device. When the WP# pin is driven low, the device will ignore all write commands, and the contents of the memory will be protected from modification.
  • To perform a sector erase operation, send the Sector Erase command (0x20) followed by the address of the sector to be erased. The device will then erase the entire sector, setting all bits to 1.
  • The S25FS064SAGNFI033 supports up to 100,000 erase cycles per sector, with a minimum of 10,000 erase cycles guaranteed.
