Part Image

S25FS064SDSBHN020 - Infineon

Description: FLASH - NOR Memory IC 64Mbit SPI - Quad I/O 80 MHz 24-BGA (8x6)

Download S25FS064SDSBHN020 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this S25FS064SDSBHN020 model

Email notifications will be applied after download.

Send part feedback

Symbol

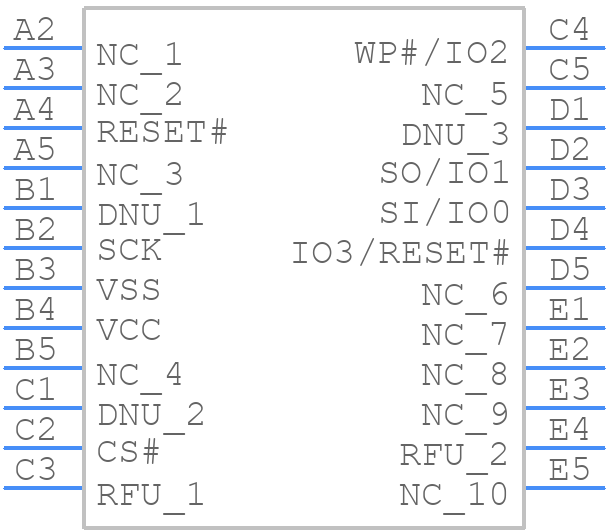

S25FS064SDSBHN020 - Infineon - PCB symbol

PCB Footprints

S25FS064SDSBHN020 - Infineon PCB footprint - BGA - BGA - BGA 24-ball 6 x 8 mm

3D Models

S25FS064SDSBHN020 - Infineon - 3D model - BGA - BGA 24-ball 6 x 8 mm

Datasheet Download Datasheet
Stock & Prices Price & Stock for S25FS064SDSBHN020
Part Number S25FS064SDSBHN020
Manufacturer Infineon
Pin Count 24
Part Category Integrated Circuit
Package Category BGA
Footprint Name BGA - BGA 24-ball 6 x 8 mm
Released Date Oct 24, 2025
Last Modified Date Oct 24, 2025 11:14 AM UTC
Pinout / Pin List Click Here (Member Only)

S25FS064SDSBHN020 Details

Manufacturer Part Number:
S25FS064SDSBHN020
Manufacturer:
Infineon Technologies AG

Trust Checks

Expert Contribution

System Verified

Community Approved

S25FS064SDSBHN020 Overview

Use the download button to access the S25FS064SDSBHN020 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like S25FS, or try a keyword search, such as Flash Memories
