S25FS256SAGMFB000 - Infineon

Description: NOR Flash Nor

Download S25FS256SAGMFB000 Model

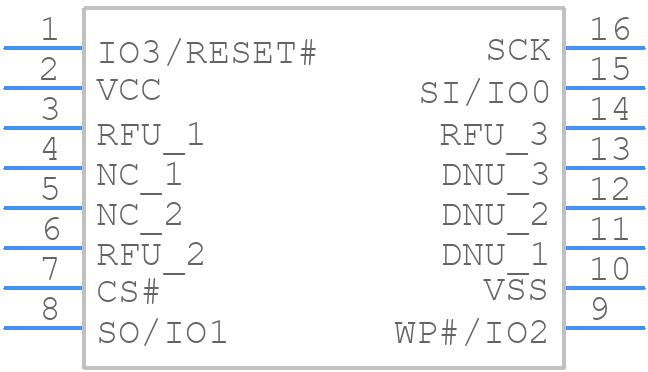

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
S25FS256SAGMFB000 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - 16-Lead SOIC
click to zoom
3D Models
S25FS256SAGMFB000 - Infineon  - 3D model - Small Outline Packages - 16-Lead SOIC
click to zoom

S25FS256SAGMFB000 Details

  • Manufacturer Part Number:

    S25FS256SAGMFB000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    10

  • Clock Frequency-Max (fCLK):

    133 MHz

  • Data Retention Time-Min:

    2

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Memory Density:

    268435456 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Number of Words:

    33554432 words

  • Number of Words Code:

    32000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    32MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    1.8 V

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.65 mm

  • Serial Bus Type:

    QSPI

  • Standby Current-Max:

    0.0003 A

  • Supply Current-Max:

    0.1 mA

  • Supply Voltage-Max (Vsup):

    2 V

  • Supply Voltage-Min (Vsup):

    1.7 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Type:

    NOR TYPE

  • Width:

    7.5 mm

  • Write Protection:

    HARDWARE/SOFTWARE

S25FS256SAGMFB000 Frequently Asked Questions (FAQs)

  • The S25FS256SAGMFB000 can operate from -40°C to +85°C, with a storage temperature range of -65°C to +150°C.
  • The HOLD# pin should be driven low during read and write operations to ensure that the device is not put into a hold state. If the HOLD# pin is driven high, the device will enter a hold state, and all ongoing operations will be suspended.
  • The WP# pin is used to protect the status register from being written. When the WP# pin is driven low, the status register is write-protected, and when it is driven high, the status register can be written.
  • The S25FS256SAGMFB000 is a 256 Mbit (32 Mbyte) flash memory device, organized as 2048 blocks of 128 Kbytes each. Each block is further divided into 64 pages of 2048 bytes each.
  • The typical programming time for a page is around 1.2 ms, but this can vary depending on the operating conditions and the specific use case.
