S25FS256SAGNFI000 - Infineon

Description: NOR Flash 256Mb, 1.8V, 133Mzh MirrorBit SPI Flash

Download S25FS256SAGNFI000 Model

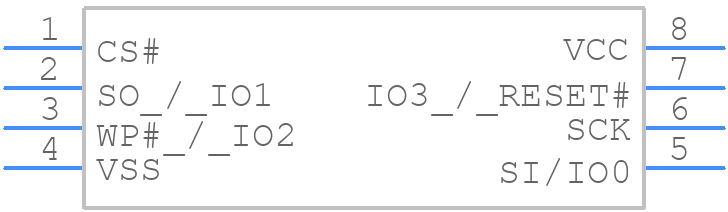

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
S25FS256SAGNFI000 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - soic8-26
click to zoom
3D Models
S25FS256SAGNFI000 - Infineon  - 3D model - Small Outline Packages - soic8-26
click to zoom

S25FS256SAGNFI000 Details

  • Manufacturer Part Number:

    S25FS256SAGNFI000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    2 Days

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    10

  • Clock Frequency-Max (fCLK):

    133 MHz

  • Data Retention Time-Min:

    2

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    8 mm

  • Memory Density:

    268435456 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    33554432 words

  • Number of Words Code:

    32000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    32MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    1.8 V

  • Seated Height-Max:

    0.8 mm

  • Serial Bus Type:

    QSPI

  • Standby Current-Max:

    0.0003 A

  • Supply Current-Max:

    0.1 mA

  • Supply Voltage-Max (Vsup):

    2 V

  • Supply Voltage-Min (Vsup):

    1.7 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Type:

    NOR TYPE

  • Width:

    6 mm

  • Write Protection:

    HARDWARE/SOFTWARE

S25FS256SAGNFI000 Frequently Asked Questions (FAQs)

  • The S25FS256SAGNFI000 has an operating temperature range of -40°C to +85°C.
  • The S25FS256SAGNFI000 has a minimum of 100,000 program/erase cycles per sector, and a minimum of 10,000 program/erase cycles per block.
  • The typical programming time for the S25FS256SAGNFI000 is 1.5 ms per 256-byte page.
  • Yes, the S25FS256SAGNFI000 supports simultaneous read and write operations, allowing for improved system performance.
  • The WP# (Write Protect) pin is used to prevent writes to the status register and the first and last 256 bytes of the device.
