S25FS256TDACHC113 footprint, schematic symbol and 3D model by Infineon

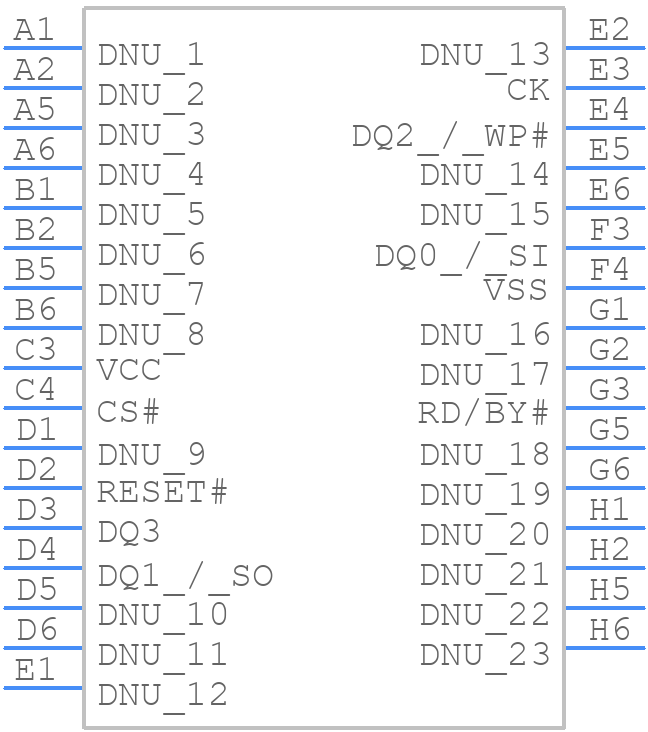

Symbol

PCB Footprints

3D Models

S25FS256TDACHC113 Details

The S25FS256TDACHC113 has an operating temperature range of -40°C to 125°C.
The S25FS256TDACHC113 has a minimum of 100,000 program/erase cycles per sector, and 10,000 program/erase cycles per block.
The typical programming time for the S25FS256TDACHC113 is 1.5 ms per 256-byte page.
No, the S25FS256TDACHC113 does not support simultaneous read and write operations. It has a single-channel architecture.
The WP# (Write Protect) pin is used to prevent writes to the status register and the first 256 bytes of the memory array.

Community Provided

System Verified

Community Approved

Use the download button to access the S25FS256TDACHC113 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like S25FS, or try a keyword search, such as Flash Memories
