S25FS512SAGBHM210 - Infineon

Description: NOR Flash Serial (SPI, Dual SPI, Quad SPI) 1.8V 512M-bit 512M/256M/128M x 1/2-bit/4-bit 8ns Automotive 24-Pin BGA Tray

Download S25FS512SAGBHM210 Model

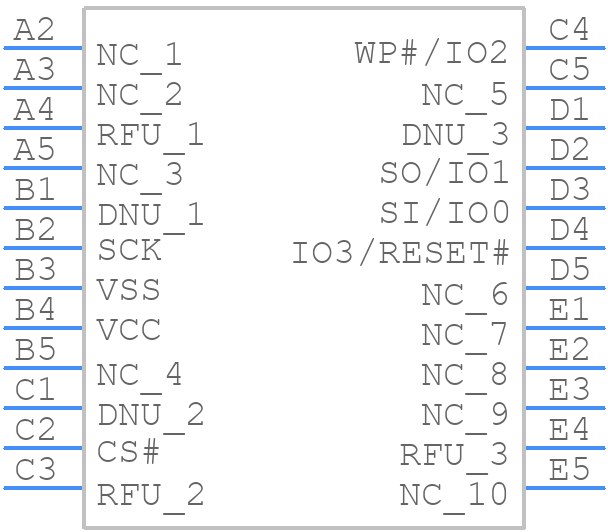

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
S25FS512SAGBHM210 - Infineon PCB footprint - BGA - BGA - Ball Grid Array 24-Ball FBGA 8.0 x 6.0 x 1.2 mm (FAB024)
click to zoom
3D Models
S25FS512SAGBHM210 - Infineon  - 3D model - BGA - Ball Grid Array 24-Ball FBGA 8.0 x 6.0 x 1.2 mm (FAB024)
click to zoom

S25FS512SAGBHM210 Details

  • Manufacturer Part Number:

    S25FS512SAGBHM210

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    10

  • Clock Frequency-Max (fCLK):

    133 MHz

  • Data Retention Time-Min:

    20

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PBGA-B24

  • JESD-609 Code:

    e1

  • Length:

    8 mm

  • Memory Density:

    536870912 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Number of Words:

    67108864 words

  • Number of Words Code:

    64000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    64MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TBGA

  • Package Equivalence Code:

    BGA24,5X5,40

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    1.8 V

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Serial Bus Type:

    QSPI

  • Standby Current-Max:

    0.0001 A

  • Supply Current-Max:

    0.1 mA

  • Supply Voltage-Max (Vsup):

    2 V

  • Supply Voltage-Min (Vsup):

    1.7 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Type:

    NOR TYPE

  • Width:

    6 mm

  • Write Protection:

    HARDWARE/SOFTWARE

S25FS512SAGBHM210 Frequently Asked Questions (FAQs)

  • The S25FS512SAGBHM210 has an operating temperature range of -40°C to +125°C, making it suitable for industrial and automotive applications.
  • The HOLD# pin should be driven low during read and write operations to ensure that the device is not put into a hold state, which would pause the operation. It's recommended to tie the HOLD# pin to VCC or use a pull-up resistor to ensure it remains high during normal operation.
  • The recommended power-up sequence is to apply VCC first, followed by VPP (if used), and then the clock signal (CLK). This ensures that the device powers up correctly and is ready for operation.
  • The optimal clock frequency depends on the specific application and system requirements. The S25FS512SAGBHM210 supports clock frequencies up to 133 MHz, but it's recommended to consult the datasheet and application notes for guidance on selecting the appropriate clock frequency for your specific use case.
  • The WP# pin is used to protect the device from accidental writes or erases. When the WP# pin is driven low, the device is write-protected, and any write or erase operations will be ignored. This pin can be used to prevent unintended changes to the device's contents.
