S25FS512SAGMFV010 - Infineon

Description: NOR Flash Nor

Download S25FS512SAGMFV010 Model
Schematic

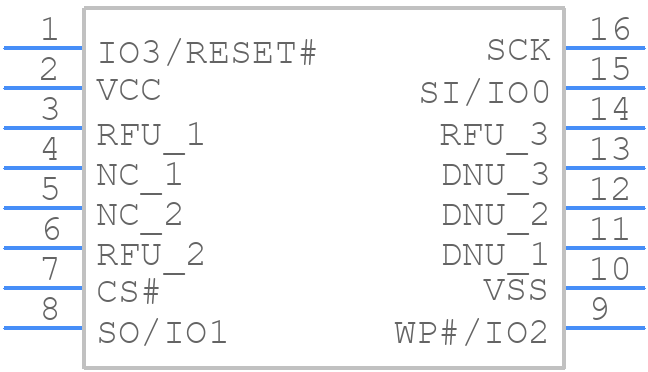

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
S25FS512SAGMFV010 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - SOIC 16-Lead (SO3016)
click to zoom
3D Models
S25FS512SAGMFV010 - Infineon  - 3D model - Small Outline Packages - SOIC 16-Lead (SO3016)
click to zoom

S25FS512SAGMFV010 Details

  • Manufacturer Part Number:

    S25FS512SAGMFV010

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    10

  • Clock Frequency-Max (fCLK):

    133 MHz

  • Data Retention Time-Min:

    20

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Memory Density:

    536870912 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Number of Words:

    67108864 words

  • Number of Words Code:

    64000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    64MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    1.8 V

  • Seated Height-Max:

    2.65 mm

  • Serial Bus Type:

    QSPI

  • Standby Current-Max:

    0.0001 A

  • Supply Current-Max:

    0.1 mA

  • Supply Voltage-Max (Vsup):

    2 V

  • Supply Voltage-Min (Vsup):

    1.7 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Type:

    NOR TYPE

  • Width:

    7.5 mm

  • Write Protection:

    HARDWARE/SOFTWARE

S25FS512SAGMFV010 Frequently Asked Questions (FAQs)

  • The S25FS512SAGMFV010 has an operating temperature range of -40°C to +85°C, with an extended temperature range of -40°C to +105°C for industrial grade devices.
  • The HOLD# pin should be driven low to pause the current operation and enter a low-power state. When HOLD# is low, the device will ignore any further input signals until HOLD# is driven high again.
  • The WP# pin is used to prevent accidental writes to the status register and the memory array. When WP# is low, the status register and memory array are write-protected.
  • The S25FS512SAGMFV010 has a density of 512 Mbits and is organized as 64,000 x 8 bits or 32,000 x 16 bits.
  • The typical programming time for a page is 1.5 ms, with a maximum time of 3.5 ms.
