Part Image

S25FS512SAGNFV010 - Infineon

Description: NOR Flash Nor

Download S25FS512SAGNFV010 Model

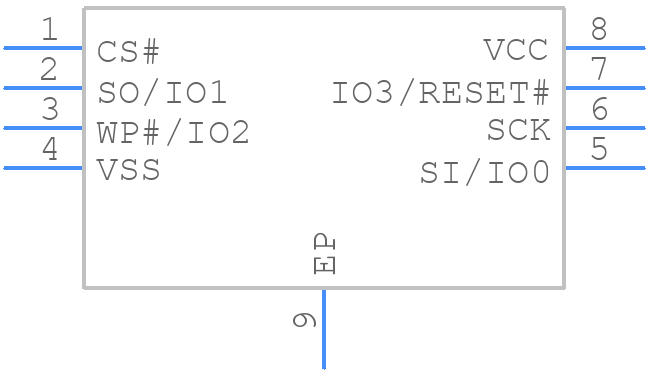

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
S25FS512SAGNFV010 - Infineon PCB footprint - Small Outline No-lead - Small Outline No-lead - S25FS512SAGNFV010
click to zoom
3D Models
S25FS512SAGNFV010 - Infineon  - 3D model - Small Outline No-lead - S25FS512SAGNFV010
click to zoom

S25FS512SAGNFV010 Details

  • Manufacturer Part Number:

    S25FS512SAGNFV010

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    10

  • Clock Frequency-Max (fCLK):

    133 MHz

  • Data Retention Time-Min:

    20

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    8 mm

  • Memory Density:

    536870912 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    67108864 words

  • Number of Words Code:

    64000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    64MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    1.8 V

  • Seated Height-Max:

    0.8 mm

  • Serial Bus Type:

    QSPI

  • Standby Current-Max:

    0.0001 A

  • Supply Current-Max:

    0.1 mA

  • Supply Voltage-Max (Vsup):

    2 V

  • Supply Voltage-Min (Vsup):

    1.7 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Type:

    NOR TYPE

  • Width:

    6 mm

  • Write Protection:

    HARDWARE/SOFTWARE

S25FS512SAGNFV010 Frequently Asked Questions (FAQs)

  • The S25FS512SAGNFV010 has an operating temperature range of -40°C to +85°C, with an extended temperature range of -40°C to +105°C for industrial grade devices.
  • The HOLD# pin should be driven low during read and write operations to prevent the device from entering a low-power state. It can be driven high during idle periods to reduce power consumption.
  • The S25FS512SAGNFV010 supports clock frequencies up to 104 MHz, but the recommended frequency is 50 MHz for optimal performance and power consumption.
  • The write protection mechanism can be enabled or disabled using the WP# pin. When WP# is low, the device is in write-protect mode, and when WP# is high, the device is in write-enable mode.
  • The S25FS512SAGNFV010 has an erase cycle endurance of 100,000 cycles, with a minimum of 10,000 cycles guaranteed.
