S25FS512SDSNFI010 - Infineon

Description: NOR Flash Nor

Download S25FS512SDSNFI010 Model

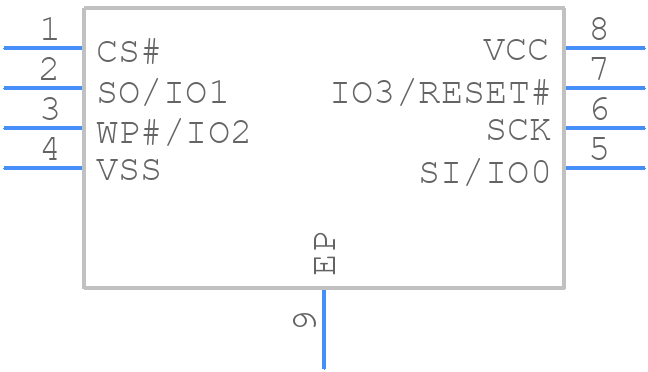

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
S25FS512SDSNFI010 - Infineon PCB footprint - Small Outline No-lead - Small Outline No-lead - S25FS512SDSNFI010_1
click to zoom
3D Models
S25FS512SDSNFI010 - Infineon  - 3D model - Small Outline No-lead - S25FS512SDSNFI010_1
click to zoom

S25FS512SDSNFI010 Details

  • Manufacturer Part Number:

    S25FS512SDSNFI010

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    10

  • Clock Frequency-Max (fCLK):

    80 MHz

  • Data Retention Time-Min:

    20

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    8 mm

  • Memory Density:

    536870912 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    67108864 words

  • Number of Words Code:

    64000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    64MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    1.8 V

  • Seated Height-Max:

    0.8 mm

  • Serial Bus Type:

    QSPI

  • Standby Current-Max:

    0.0001 A

  • Supply Current-Max:

    0.1 mA

  • Supply Voltage-Max (Vsup):

    2 V

  • Supply Voltage-Min (Vsup):

    1.7 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Type:

    NOR TYPE

  • Width:

    6 mm

  • Write Protection:

    HARDWARE/SOFTWARE

S25FS512SDSNFI010 Frequently Asked Questions (FAQs)

  • The S25FS512SDSNFI010 has an operating temperature range of -40°C to +125°C.
  • The HOLD# pin should be driven low to pause the current operation and enter a low-power state. It should be driven high to resume the operation.
  • The WP# pin is used to protect the status register from being written. When WP# is low, the status register is write-protected.
  • The device density is 512 Mbit, and it is organized as 64 M x 8 bits or 32 M x 16 bits.
  • The typical programming time for a page is 1.5 ms (max 3 ms).
