S25HL02GTDPBHB050 - Infineon

Description: 2-Gb (DDP)/4-Gb (QDP), SEMPER™ Flash with Quad SPI 1.8 V, 3.0 V

Download S25HL02GTDPBHB050 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this S25HL02GTDPBHB050 model

Email notifications will be applied after download.

Send part feedback

Symbol

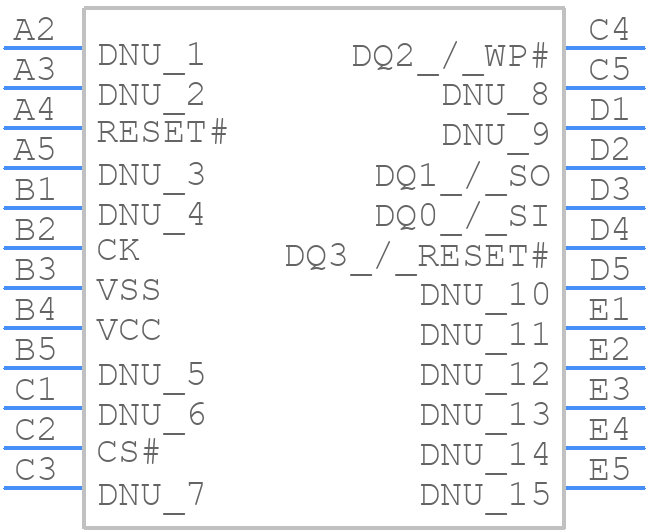

S25HL02GTDPBHB050 - Infineon - PCB symbol

PCB Footprints

S25HL02GTDPBHB050 - Infineon PCB footprint - BGA - BGA - 24-ball BGA

3D Models

S25HL02GTDPBHB050 - Infineon - 3D model - BGA - 24-ball BGA

Datasheet Download Datasheet
Stock & Prices Price & Stock for S25HL02GTDPBHB050
Part Number S25HL02GTDPBHB050
Manufacturer Infineon
Pin Count 24
Part Category Integrated Circuit
Package Category BGA
Footprint Name BGA - 24-ball BGA
Released Date Feb 21, 2025
Last Modified Date Feb 21, 2025 4:25 AM UTC
Pinout / Pin List Click Here (Member Only)

S25HL02GTDPBHB050 Details

Manufacturer Part Number:
S25HL02GTDPBHB050
Manufacturer:
Infineon Technologies AG

Trust Checks

Community Provided

System Verified

Community Approved

S25HL02GTDPBHB050 Overview

Use the download button to access the S25HL02GTDPBHB050 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like S25HL, or try a keyword search, such as Flash Memories
