The recommended operating temperature range for the S25HL512TDPNHB010 is -40°C to +85°C, with a storage temperature range of -65°C to +150°C.
The hold pin (HOLD#) should be driven low to pause the current operation and enter a low-power state. When HOLD# is low, the device will ignore any further input signals until HOLD# is driven high again.
The write protect pin (WP#) is used to prevent accidental writes to the device. When WP# is driven low, the device will ignore any write commands. To use WP#, connect it to VCC or a pull-up resistor to enable write operations, or connect it to GND or a pull-down resistor to disable write operations.
The optimal clock frequency depends on the specific application and system requirements. The S25HL512TDPNHB010 supports clock frequencies up to 133 MHz, but the actual frequency used should be determined by the system's timing requirements and signal integrity considerations.
The S25HL512TDPNHB010 is a specific part number with a unique combination of features, such as a 512 Mbit density, 3.0V to 3.6V operating voltage, and a 24-ball BGA package. Other similar devices from Infineon may have different densities, operating voltages, or package options, so it's essential to consult the datasheet and product documentation to ensure the correct part is selected for the application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
S25HL512TDPNHB010 Overview

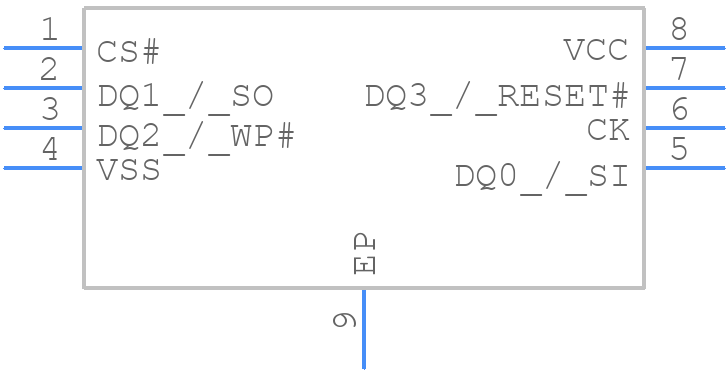

Use the download button to access the S25HL512TDPNHB010 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like S25HL,
or try a keyword search, such as Flash Memories
