S25HL512TFAMHI010 - Infineon

Description: FLASH - NOR Memory IC 512Mbit SPI - Quad I/O 166 MHz 16-SOIC

Download S25HL512TFAMHI010 Model

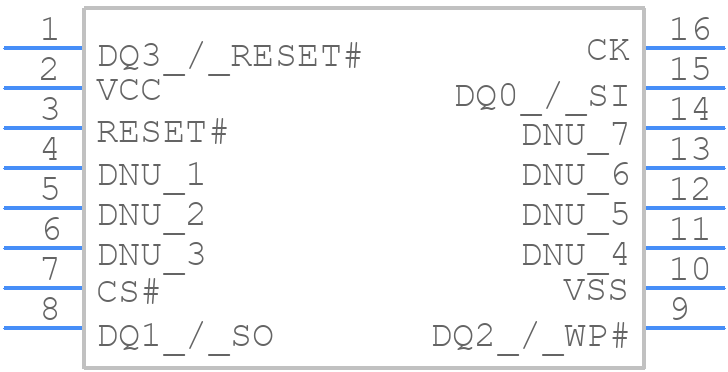

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
S25HL512TFAMHI010 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-DSO-16_2024
click to zoom
3D Models
S25HL512TFAMHI010 - Infineon  - 3D model - Small Outline Packages - PG-DSO-16_2024
click to zoom

S25HL512TFAMHI010 Details

  • Manufacturer Part Number:

    S25HL512TFAMHI010

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    12

  • Clock Frequency-Max (fCLK):

    166 MHz

  • Data Retention Time-Min:

    25

  • Endurance:

    1280000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    10.3 mm

  • Memory Density:

    536870912 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Number of Words:

    67108864 words

  • Number of Words Code:

    64000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    64MX8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    3 V

  • Seated Height-Max:

    2.65 mm

  • Serial Bus Type:

    SPI

  • Standby Current-Max:

    0.00034 A

  • Supply Current-Max:

    0.069 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Type:

    NOR TYPE

  • Width:

    7.5 mm

  • Write Protection:

    HARDWARE

S25HL512TFAMHI010 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the S25HL512TFAMHI010 is 2.7V to 3.6V.
  • The hold pin (HOLD#) should be pulled high during power-up and power-down sequences to prevent unwanted writes or erases.
  • The WP# pin is a write-protect pin that prevents writes to the status register and the memory array. It should be tied to VCC or left floating to enable writes, or tied to GND to disable writes.
  • The optimal clock frequency depends on the specific application requirements. The S25HL512TFAMHI010 supports clock frequencies up to 104 MHz, but the actual frequency used should be determined by the system's timing requirements and noise tolerance.
  • The S25HL512TFAMHI010 is rated for operation up to 125°C, but high temperatures can affect the device's performance, endurance, and data retention. Ensure that the device is operated within the recommended temperature range and that thermal management is implemented to prevent overheating.
