The recommended operating temperature range for the S25HS01GTFAMHI010 is -40°C to 125°C, as specified in the datasheet. However, it's essential to note that the device can tolerate a wider temperature range during storage, which is -55°C to 150°C.
To ensure reliable data retention in the S25HS01GTFAMHI010, it's crucial to follow the recommended usage and storage guidelines. This includes avoiding exposure to extreme temperatures, humidity, and radiation. Additionally, the device should be powered down correctly, and the VCC supply voltage should be within the specified range during data retention.
The S25HS01GTFAMHI010 supports up to 100,000 erase cycles per sector, and up to 10,000 erase cycles per block. It's essential to consider these limitations when designing your application to ensure the device's endurance meets your requirements.
When powering up the S25HS01GTFAMHI010, ensure that the VCC supply voltage rises monotonically and reaches the minimum specified voltage (2.7V) before applying any clock or input signals. During power-down, ensure that the VCC supply voltage falls below 2.7V before removing clock or input signals. This helps prevent unwanted device behavior and ensures reliable operation.
When using the S25HS01GTFAMHI010 in a high-reliability or safety-critical application, it's essential to follow Infineon's guidelines for functional safety and reliability. This includes implementing error detection and correction mechanisms, using redundant systems, and ensuring compliance with relevant industry standards and regulations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
S25HS01GTFAMHI010 Overview

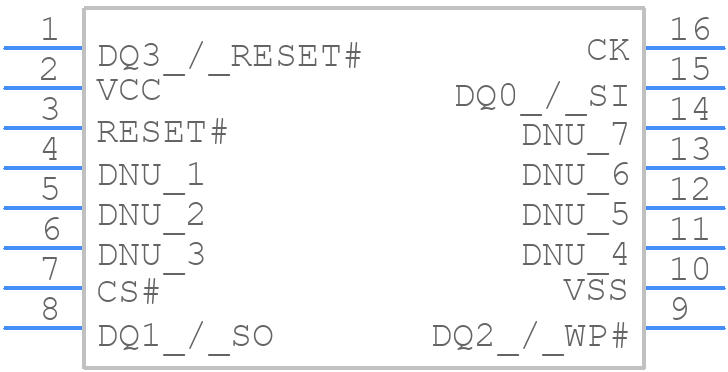

Use the download button to access the S25HS01GTFAMHI010 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like S25HS,
or try a keyword search, such as Flash Memories
