S26KL512SDABHB020 - Infineon

Description: FLASH - NOR Memory IC 512Mbit HyperBus 100 MHz 96 ns 24-FBGA (6x8)

Download S26KL512SDABHB020 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this S26KL512SDABHB020 model

Email notifications will be applied after download.

Send part feedback

Symbol

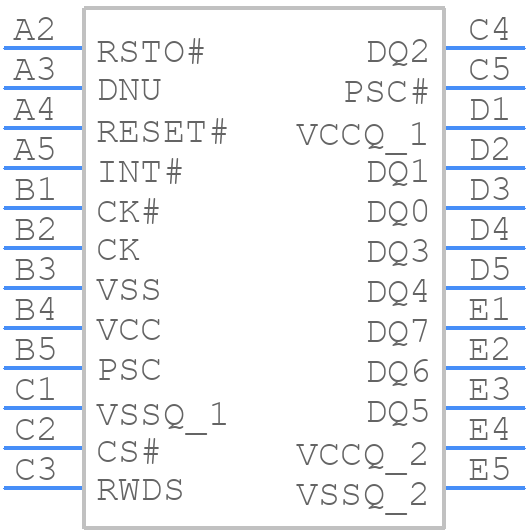

S26KL512SDABHB020 - Infineon - PCB symbol

PCB Footprints

S26KL512SDABHB020 - Infineon PCB footprint - BGA - BGA - 24-ball 6 x 8 x 1.0 mm (VAA024)

3D Models

S26KL512SDABHB020 - Infineon - 3D model - BGA - 24-ball 6 x 8 x 1.0 mm (VAA024)

Datasheet Download Datasheet
Stock & Prices Price & Stock for S26KL512SDABHB020
Part Number S26KL512SDABHB020
Manufacturer Infineon
Pin Count 24
Part Category Integrated Circuit
Package Category BGA
Footprint Name BGA - 24-ball 6 x 8 x 1.0 mm (VAA024)
Released Date Nov 8, 2025
Last Modified Date Nov 8, 2025 11:24 AM UTC
Pinout / Pin List Click Here (Member Only)

S26KL512SDABHB020 Details

Manufacturer Part Number:
S26KL512SDABHB020
Manufacturer:
Infineon Technologies AG

Trust Checks

Community Provided

System Verified

Community Approved

S26KL512SDABHB020 Overview

Use the download button to access the S26KL512SDABHB020 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like S26KL, or try a keyword search, such as Flash Memories
