The recommended operating temperature range for the S29AL008J70BFI023 is -40°C to +85°C, with a maximum junction temperature of +125°C.
The HOLD# signal should be asserted low to pause the current operation and enter a low-power state. De-asserting HOLD# resumes the operation. Note that HOLD# should not be asserted during a write operation, as it may cause data corruption.
The WP# signal is used to protect the entire memory array or specific sectors from write operations. When WP# is asserted low, the corresponding sectors or the entire memory array are write-protected.
The optimal clock frequency depends on the specific application and system requirements. The S29AL008J70BFI023 supports clock frequencies up to 133 MHz, but the actual frequency should be determined based on factors such as system latency, power consumption, and data transfer rates.
The recommended power-up sequence is to apply VCC first, followed by VPP (if used), and then the clock signal. This ensures proper initialization and prevents latch-up conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
S29AL008J70BFI023 Overview

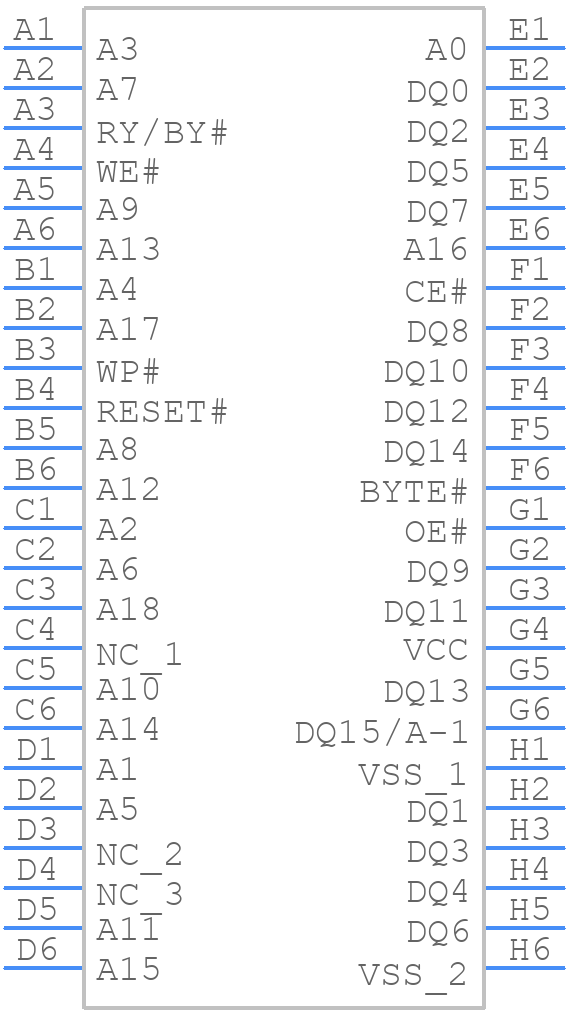

Use the download button to access the S29AL008J70BFI023 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like S29AL,
or try a keyword search, such as Flash Memories
