A recommended PCB layout for optimal thermal performance would be to have a large copper area on the bottom layer of the PCB, connected to the thermal pad of the S2EB-48V. This will help to dissipate heat efficiently.
To ensure reliable operation in high-temperature environments, it is recommended to derate the maximum operating temperature and current rating of the S2EB-48V according to the datasheet. Additionally, ensure good airflow and thermal management around the device.
When handling the S2EB-48V, precautions should be taken to prevent damage from static electricity, excessive force, and bending. Use an anti-static wrist strap or mat, handle the device by the body and not the leads, and avoid bending or flexing the leads.
Yes, the S2EB-48V is suitable for use in high-reliability applications. However, it is recommended to consult with Panasonic's reliability and quality teams to ensure that the device meets the specific requirements of the application.
To troubleshoot issues with the S2EB-48V, start by checking the device's operating conditions, such as voltage, current, and temperature. Verify that the device is used within its recommended operating conditions and that the PCB layout is correct. If the issue persists, consult the datasheet and application notes, or contact Panasonic's technical support team.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
S2EB-48V Overview

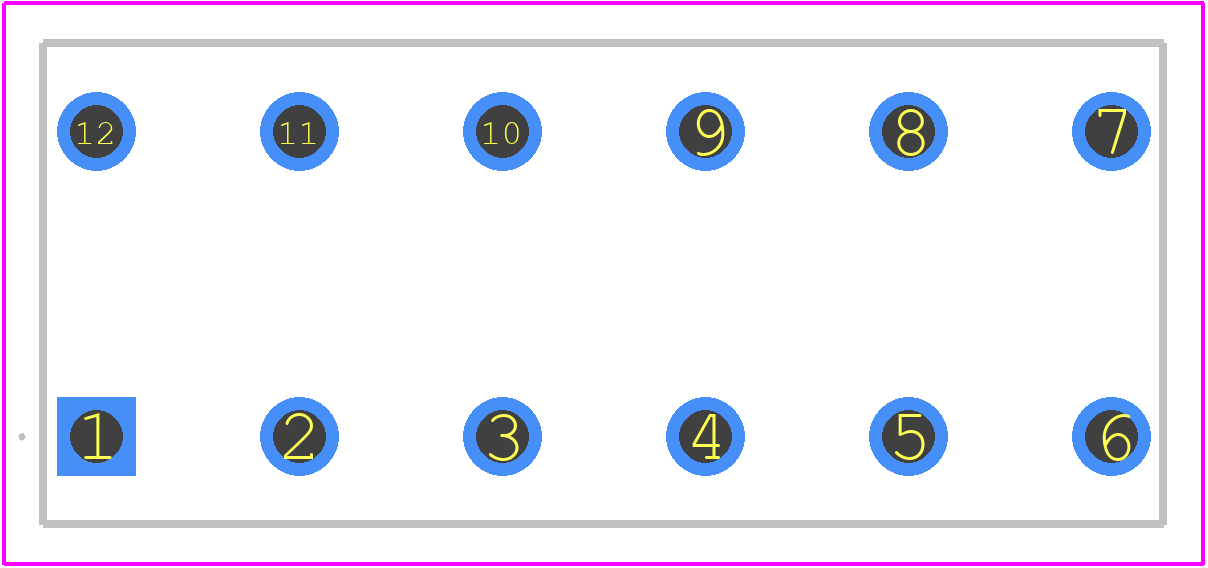

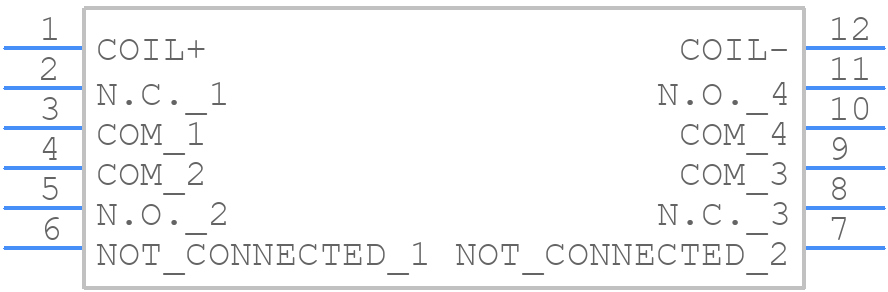

Use the download button to access the S2EB-48V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like S2EB-,
or try a keyword search, such as Power/Signal Relays
