S2EB-L2-24V - Panasonic

Description: 2 Form A 2 Form B/3 Form A 1 Form B/4 Form A /4 A Polarized power relays

Download S2EB-L2-24V Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

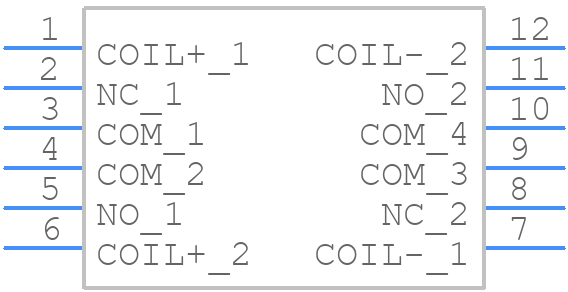

S2EB-L2-24V - Panasonic - PCB symbol
click to zoom
PCB Footprints

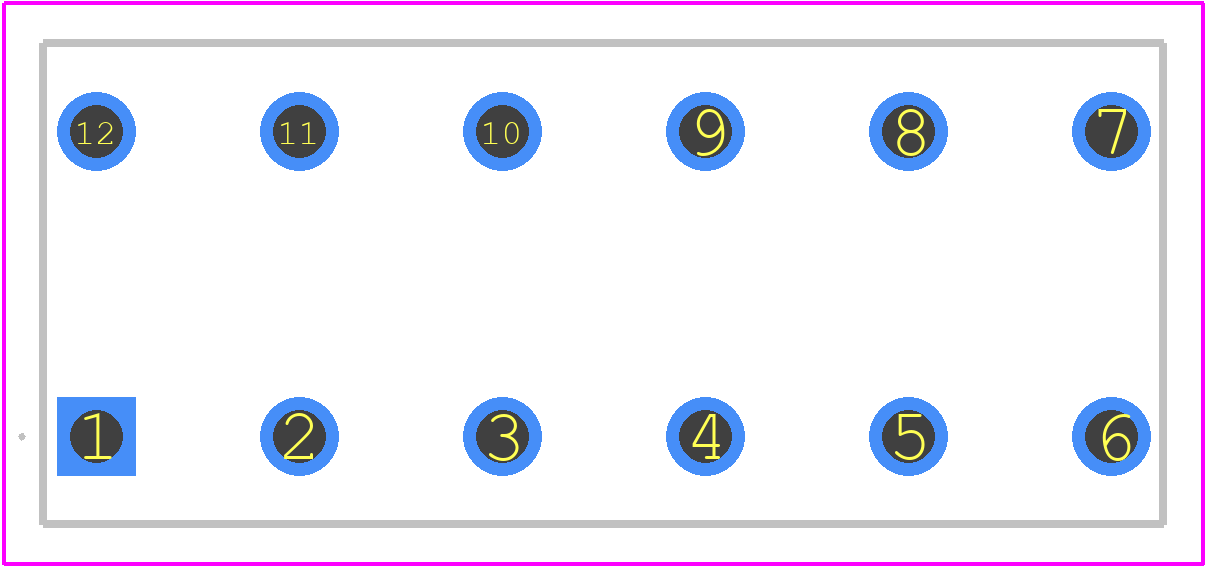

S2EB-L2-24V - Panasonic PCB footprint - Other - Other - S2EB-L2-24V-2
click to zoom
3D Models
S2EB-L2-24V - Panasonic - 3D model - Other - S2EB-L2-24V-2
click to zoom

S2EB-L2-24V Details

  • Manufacturer Part Number:

    S2EB-L2-24V

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.41.00.20

  • Factory Lead Time:

    17 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    8

  • Body Breadth:

    12 mm

  • Body Height:

    10 mm

  • Body Length or Diameter:

    28 mm

  • Coil Current(DC)-Max:

    0.008 A

  • Coil Operate Voltage(DC):

    16.8 V

  • Coil Power:

    202 mW

  • Coil Release Voltage(DC):

    16.8 V

  • Coil Resistance:

    2850 Ω

  • Coil Voltage(DC)-Max:

    43.2 V

  • Coil Voltage-Nom:

    24 V

  • Coil/Input Supply Type:

    DC

  • Contact (AC) Max Rating R Load:

    4A@250VAC

  • Contact Current(AC)-Max:

    4 A

  • Contact Current(DC)-Max:

    3 A

  • Contact (DC) Max Rating R Load:

    3A@48VDC

  • Contact Voltage(AC)-Max:

    250 V

  • Contact Voltage(DC)-Max:

    48 V

  • Contact/Output Supply Type:

    AC/DC

  • Electrical Life:

    100000 Cycle(s)

  • End Contact Material:

    SILVER NICKEL/SILVER TIN OXIDE

  • End Contact Plating:

    GOLD

  • Input Switching Control Type:

    Random

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Number of Terminals:

    12

  • Operate Time:

    15 ms

  • Operating Temperature-Max:

    65 °C

  • Operating Temperature-Min:

    -55 °C

  • Packing Method:

    BOX

  • Physical Dimension:

    28mm x 12mm x 10mm

  • Reference Standard:

    CSA; UL

  • Relay Action:

    LATCHED

  • Relay Form:

    2 FORM A,B

  • Relay Function:

    4PST

  • Relay Type:

    POWER/SIGNAL RELAY

  • Release Time:

    10 ms

  • Surface Mount:

    NO

  • Terminal Length:

    0.003987807975615951 inch

  • Termination Type:

    SOLDER

S2EB-L2-24V Frequently Asked Questions (FAQs)

  • The maximum switching frequency of the S2EB-L2-24V relay is 20 Hz. However, it's recommended to consult with Panasonic's application engineers to determine the suitable switching frequency for your specific application.
  • The S2EB-L2-24V relay is designed to operate in temperatures ranging from -40°C to 85°C. However, the relay's performance and lifespan may be affected at extreme temperatures. It's recommended to consult with Panasonic's application engineers to determine the relay's suitability for your specific application.
  • The recommended PCB layout and spacing for the S2EB-L2-24V relay can be found in Panasonic's application notes and design guides. It's essential to follow these guidelines to ensure proper relay operation and to prevent electrical noise and interference.
  • The S2EB-L2-24V relay is designed to withstand moderate vibration levels. However, it's recommended to consult with Panasonic's application engineers to determine the relay's suitability for your specific application, especially if it involves extreme vibration or shock.
  • The recommended derating curve for the S2EB-L2-24V relay can be found in Panasonic's datasheet and application notes. It's essential to follow this curve to ensure the relay's safe and reliable operation.
