Panasonic recommends a PCB layout with a large ground plane and a separate power plane for the input and output. The input and output capacitors should be placed as close as possible to the module, and the traces should be kept short and wide to minimize inductance and resistance.
To ensure reliable operation in high-temperature environments, it is recommended to derate the output power and current according to the temperature derating curve provided in the datasheet. Additionally, ensure good airflow around the module and consider using a heat sink if necessary.
The maximum allowable ripple current for the input capacitors is not explicitly stated in the datasheet, but as a general rule, it is recommended to keep the ripple current below 20% of the rated current to ensure reliable operation.
Yes, the S2EB-L2-48V can be used in a redundant or parallel configuration, but it is recommended to consult with Panasonic's application engineers to ensure that the configuration is properly designed and implemented to avoid any potential issues.
The typical start-up time for the S2EB-L2-48V is around 10-20 ms, but this can vary depending on the input voltage, output load, and other factors. It is recommended to consult the datasheet and application notes for more detailed information.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
S2EB-L2-48V Overview

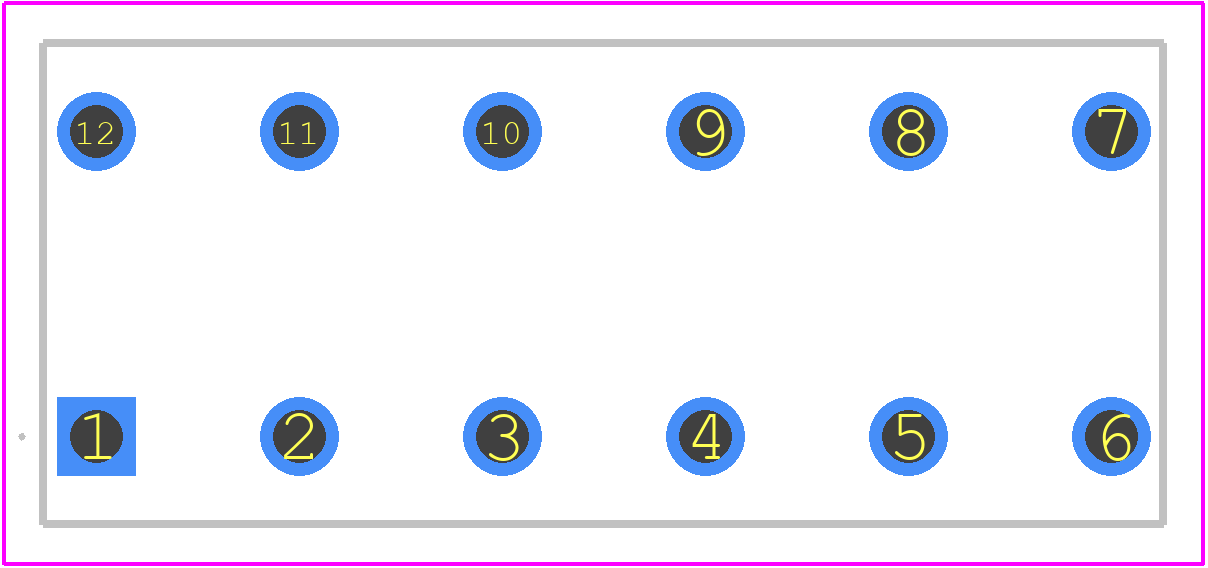

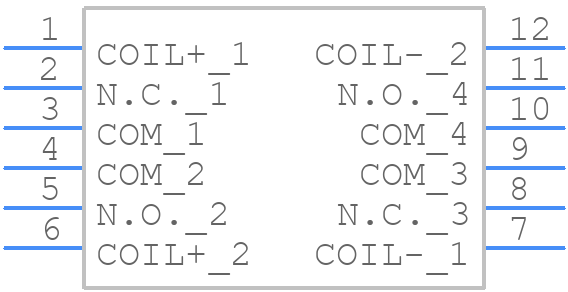

Use the download button to access the S2EB-L2-48V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like S2EB-,
or try a keyword search, such as Power/Signal Relays
