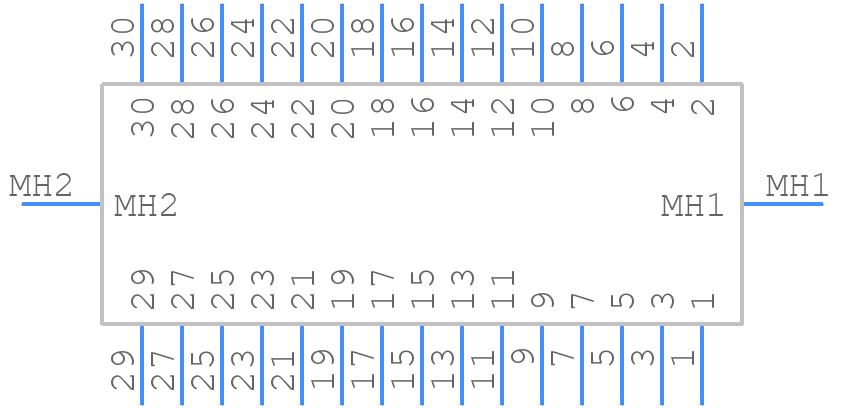

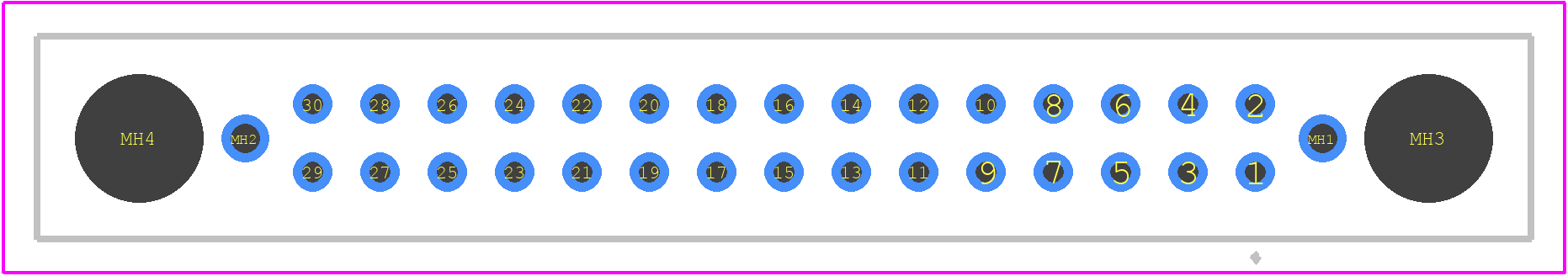

S2M-115-01-L-D-DS - SAMTEC

S2M-115-01-L-D-DS Details

• Manufacturer Part Number:

  S2M-115-01-L-D-DS

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Malaysia, USA

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Manufacturer:

  Samtec Inc

• YTEOL:

  8

• Board Mounting Option:

  HOLE 0.035

• Body Breadth:

  0.21 inch

• Body Depth:

  0.178 inch

• Body Length:

  1.195 inch

• Body/Shell Style:

  SOCKET

• Connector Type:

  BOARD STACKING CONNECTOR

• Contact Finish Mating:

  NOT SPECIFIED

• Contact Finish Termination:

  Tin (Sn) - with Nickel (Ni) barrier

• Contact Gender:

  FEMALE

• Contact Material:

  NOT SPECIFIED

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  15 mΩ

• Contact Style:

  SQ PIN-SKT

• Dielectric Withstanding Voltage:

  1050VAC V

• Durability:

  100 Cycles

• Filter Feature:

  NO

• Insulation Resistance:

  5000000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  LIQUID CRYSTAL POLYMER

• JESD-609 Code:

  e3

• Mating Contact Pitch:

  0.079 inch

• Mating Contact Row Spacing:

  0.079 inch

• Mating Information:

  MULTIPLE MATING PARTS AVAILABE

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Option 2:

  SCREW

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  2 mm

• Plating Thickness:

  10u inch

• Polarization Key:

  POLARIZED HOUSING

• Rated Current (Signal):

  2.6 A

• Terminal Length:

  0.082 inch

• Terminal Pitch:

  2 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  30
