S2M-122-01-L-D footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

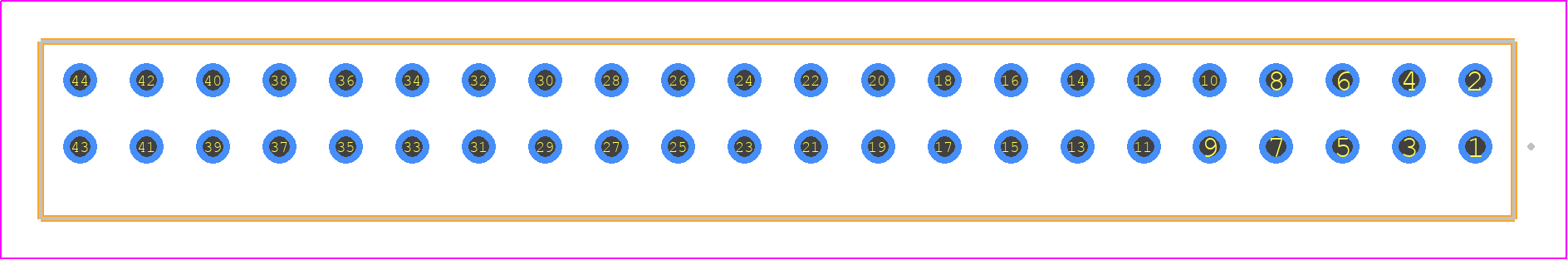

PCB Footprints

S2M-122-01-L-D - SAMTEC PCB footprint - Other - Other - S2M-122-01-Y-D

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for S2M-122-01-L-D
Part Number S2M-122-01-L-D
Manufacturer SAMTEC
Pin Count 44
Part Category Connector
Package Category Other
Footprint Name Other - S2M-122-01-Y-D
Released Date Jun 28, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

S2M-122-01-L-D Details

Manufacturer Part Number:
S2M-122-01-L-D
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Samtec Inc
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Material:
NOT SPECIFIED

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

S2M-122-01-L-D Overview

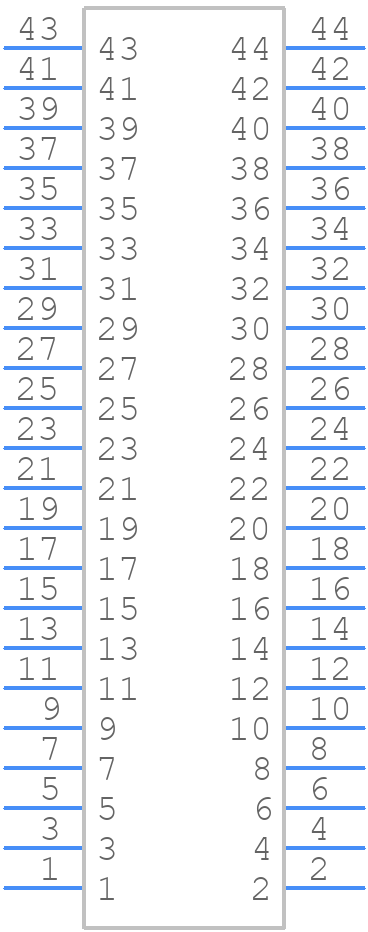

Use the download button to access the S2M-122-01-L-D schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like S2M-1, or try a keyword search, such as Headers and Edge Type Connectors
