S2M-141-01-S-D - SAMTEC

Description: 82 Position, High Reliability Tiger Eye™ Discrete Wire Socket, 2.00 mm Pitch

Download S2M-141-01-S-D Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this S2M-141-01-S-D model

Email notifications will be applied after download.

Send part feedback

Symbol

S2M-141-01-S-D - SAMTEC - PCB symbol

PCB Footprints

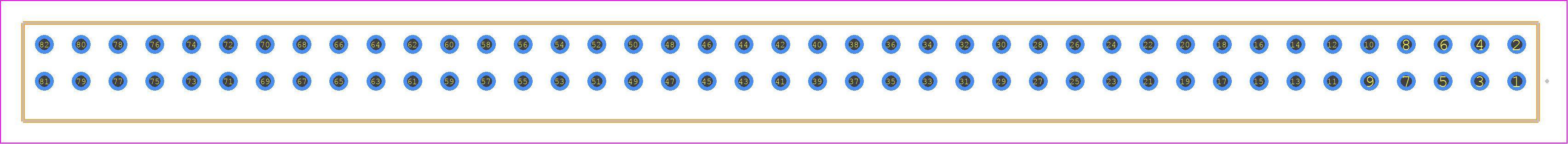

S2M-141-01-S-D - SAMTEC PCB footprint - Other - Other - S2M-141-01-Y-D

Datasheet Download Datasheet
Stock & Prices Price & Stock for S2M-141-01-S-D
Part Number S2M-141-01-S-D
Manufacturer SAMTEC
Pin Count 82
Part Category Connector
Package Category Other
Footprint Name Other - S2M-141-01-Y-D
Released Date Jun 28, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

S2M-141-01-S-D Details
