S32K310NHT0MLFST - NXP

Description: ARM® Cortex®-M7 S32K3 Microcontroller IC 32-Bit 120MHz 512KB (512K x 8) FLASH 48-LQFP (7x7)

Download S32K310NHT0MLFST Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

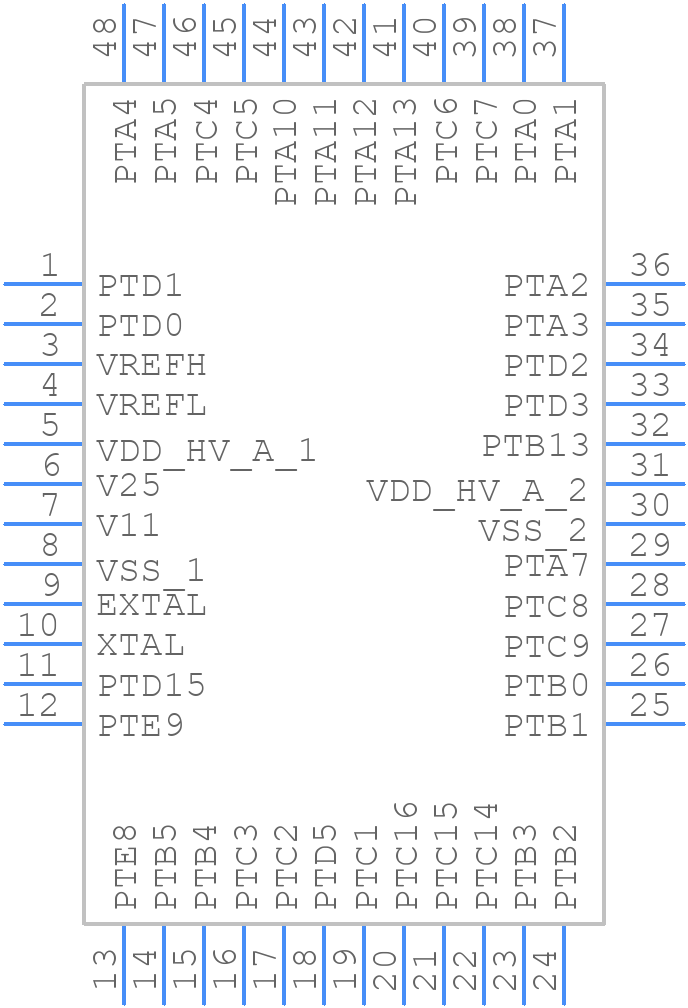

S32K310NHT0MLFST - NXP - PCB symbol
click to zoom
PCB Footprints
S32K310NHT0MLFST - NXP PCB footprint - Quad Flat Packages - Quad Flat Packages - SOT313-3
click to zoom
3D Models
S32K310NHT0MLFST - NXP - 3D model - Quad Flat Packages - SOT313-3
click to zoom

S32K310NHT0MLFST Details

  • Manufacturer Part Number:

    S32K310NHT0MLFST

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    3A991.a.2

  • HTS Code:

    8542.31.00.25

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    13

  • Has ADC:

    YES

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • CPU Family:

    CORTEX-M7

  • Clock Frequency-Max:

    40 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • Format:

    FLOATING POINT

  • Integrated Cache:

    YES

  • JESD-30 Code:

    S-PQFP-G48

  • Length:

    7 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of DMA Channels:

    12

  • Number of Serial I/Os:

    4

  • Number of Terminals:

    48

  • Number of Timers:

    3

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Equivalence Code:

    QFP48,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • RAM (bytes):

    114688

  • ROM (words):

    524288

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.6 mm

  • Speed:

    120 MHz

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.97 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

S32K310NHT0MLFST Frequently Asked Questions (FAQs)

  • NXP provides a recommended PCB layout and thermal management strategy in the S32K310NHT0MLFST application note (AN12144). It's essential to follow these guidelines to ensure proper heat dissipation and signal integrity.
  • NXP provides a power consumption calculator tool that helps estimate the power consumption of the S32K310NHT0MLFST based on the application's specific requirements. Additionally, the datasheet provides guidelines on how to optimize power consumption by adjusting clock frequencies, voltage levels, and peripheral usage.
  • The S32K310NHT0MLFST's ADC has limitations in terms of accuracy, noise, and sampling rate. To improve its accuracy, it's essential to follow proper ADC calibration procedures, use adequate filtering, and ensure proper PCB layout and signal routing. NXP provides application notes and guidelines on how to optimize ADC performance.
  • NXP provides guidelines on how to configure and optimize the S32K310NHT0MLFST's CAN bus interface in the datasheet and application notes. It's essential to follow these guidelines and ensure proper PCB layout, signal routing, and termination to meet the requirements of your specific application.
  • The S32K310NHT0MLFST has built-in security features such as secure boot, firmware encryption, and secure firmware updates. NXP provides guidelines and tools to implement secure boot and firmware updates, including the S32K310NHT0MLFST security reference manual and the NXP MCU Bootloader.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

S32K310NHT0MLFST Overview

Use the download button to access the S32K310NHT0MLFST schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like S32K3, or try a keyword search, such as Microcontrollers

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
