S32K344NHT1MPBST - NXP

Description: ARM Microcontrollers - MCU S32K344 Arm Cortex-M7,160 MHz,4 MB Flash,CAN FD,Flex IO,HSE B security,172 MaxQFP S32K MCUs for General Purpose

Download S32K344NHT1MPBST Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
S32K344NHT1MPBST - NXP - PCB symbol
click to zoom
PCB Footprints

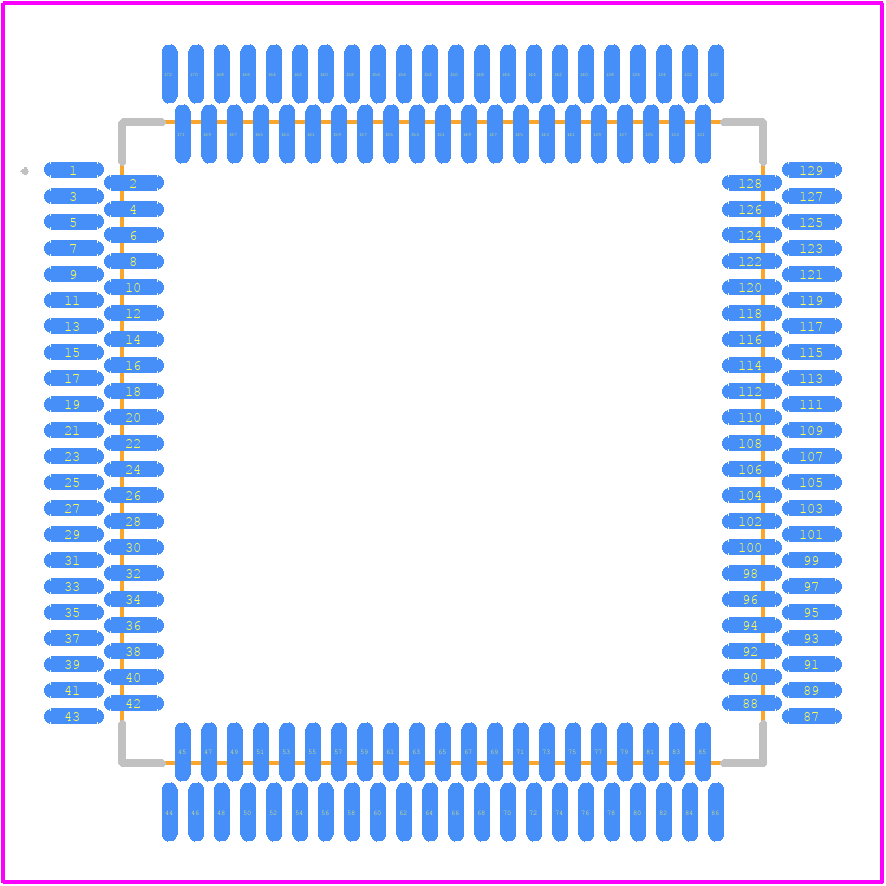

S32K344NHT1MPBST - NXP PCB footprint - Other - Other - S32K344NHT1MPBST-3
click to zoom
3D Models
S32K344NHT1MPBST - NXP - 3D model - Other - S32K344NHT1MPBST-3
click to zoom

S32K344NHT1MPBST Details

  • Manufacturer Part Number:

    S32K344NHT1MPBST

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFP-172

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    11

  • Has ADC:

    YES

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • CPU Family:

    CORTEX-M7

  • Clock Frequency-Max:

    48 MHz

  • DAC Channels:

    YES

  • DMA Channels:

    YES

  • Format:

    FLOATING-POINT

  • Integrated Cache:

    YES

  • JESD-30 Code:

    S-PQFP-G172

  • Length:

    16 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of DMA Channels:

    32

  • Number of External Interrupts:

    32

  • Number of Serial I/Os:

    16

  • Number of Terminals:

    172

  • Number of Timers:

    10

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QFP

  • Package Equivalence Code:

    QFP172,.75SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK

  • Peak Reflow Temperature (Cel):

    260

  • RAM (bytes):

    557056

  • ROM (words):

    4194304

  • ROM Programmability:

    FLASH

  • Screening Level:

    AEC-Q100; ISO 26262

  • Seated Height-Max:

    1.75 mm

  • Speed:

    160 MHz

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.97 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    16 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

S32K344NHT1MPBST Frequently Asked Questions (FAQs)

  • NXP provides a recommended PCB layout guide for the S32K344NHT1MPBST in the 'S32K344NHT1MPBST PCB Layout Guidelines' document, which can be found on the NXP website. This document provides detailed guidelines for designing a robust and reliable PCB layout.
  • To optimize power consumption in the S32K344NHT1MPBST, use the low-power modes (e.g., Wait, Stop, and VLPS) provided by the microcontroller. Additionally, optimize the clock frequency, disable unused peripherals, and use the power gating feature to reduce power consumption. NXP also provides a 'Power Management' application note that provides more detailed guidance.
  • The S32K344NHT1MPBST has an operating temperature range of -40°C to 125°C, as specified in the datasheet. However, it's essential to note that the device's performance and reliability may be affected at extreme temperatures. It's recommended to consult the datasheet and NXP's 'Reliability and Quality' documentation for more information.
  • The S32K344NHT1MPBST has a built-in Secure Boot mechanism that ensures the authenticity and integrity of the firmware. To implement secure boot, follow the guidelines provided in the 'S32K344NHT1MPBST Secure Boot' application note, which includes steps for generating and loading secure boot keys, configuring the boot mode, and verifying the boot process.
  • NXP provides a range of development tools and software for the S32K344NHT1MPBST, including the S32 Design Studio, which is a free, Eclipse-based IDE that includes a compiler, debugger, and project manager. Additionally, NXP offers the MCUXpresso SDK, which provides a comprehensive set of software components, drivers, and examples to help developers get started quickly.
