The maximum operating temperature range for the S34ML01G200TFI000 is 0°C to 85°C, with a storage temperature range of -40°C to 100°C.
To ensure signal integrity and reduce noise, use a 50-ohm transmission line, keep the signal traces short, and use a ground plane to reduce electromagnetic interference (EMI).
The recommended power-up sequence is to apply VCC first, followed by VCCQ, and then clock and input signals. This ensures proper initialization and prevents latch-up.
Implement error detection and correction mechanisms, such as ECC (Error-Correcting Code) or CRC (Cyclic Redundancy Check), to detect and correct errors. Also, use interrupts or error flags to handle exceptions.
The maximum current consumption of the S34ML01G200TFI000 is 1.5A during write operations and 1.2A during read operations, with a standby current of 100mA.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
S34ML01G200TFI000 Overview

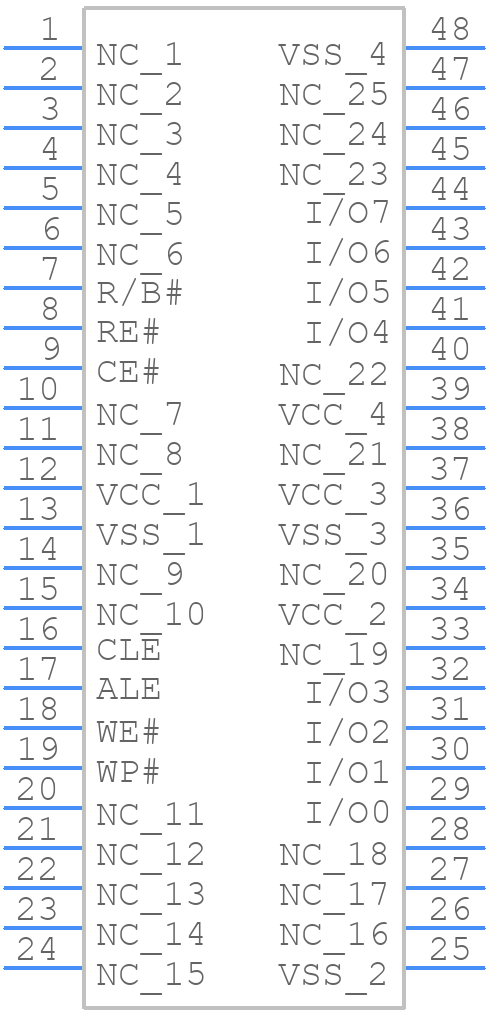

Use the download button to access the S34ML01G200TFI000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like S34ML,
or try a keyword search, such as Flash Memories
